产品概述
描述

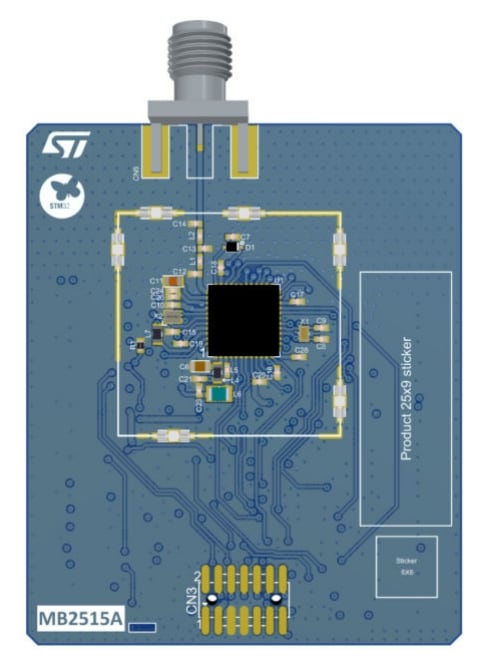

The main objective of the STM32WBA2xxx microcontroller reference designs is to recommend a layout and associated BOM for dedicated applications (these boards are not for sale).
These reference designs can be manufactured from files available for download from the www.st.com website. The access to all GPIOs allows the prototyping of a complete application.
Sensitive layout parts can be extracted and pasted in any user board design with the same PCB characteristics and feature set.
The STM32WBA2xxx microcontroller reference designs are provided with the STM32WBA comprehensive software HAL library. The STM32CubeWBA MCU Package contains many software examples developed with the NUCLEO-WBA25CE1 Nucleo-64 board. These examples can be easily adapted for the STM32WBA2xxx microcontroller reference designs.
-
所有功能
- Includes ST state-of-the-art patented technology
- Reference design
- Microcontroller RF board
- Microcontroller
- STM32WBA2xxx microcontrollers in a variety of packages
- 2.4 GHz transceiver supporting Bluetooth® specification v6.0
- Dedicated Arm® Cortex®‑M33 processor for real-time radio layer
- Connectors
- Two 50-pin headers for connecting a compatible mezzanine board (MB1801)
- RF SMA connector
- STDC14 footprint for connecting an ST-LINK device
- Power supply
- USB VBUS through the mezzanine board (MB1801)
- Debugging/Programming
- Through the ST-LINK embedded in the mezzanine board with re-enumeration capability: mass storage, Virtual COM port, and debug port
- 软件
- Comprehensive free software libraries and examples available with the STM32CubeWBA MCU Package
- Support of a wide choice of Integrated Development Environments (IDEs) including IAR Embedded Workbench®, MDK-ARM, and STM32CubeIDE
所有资源
| 资源标题 | 版本 | 更新时间 | Actions | 細節 | 下載 |
|---|
Board Manufacturing Specifications (2)
| 资源标题 | 版本 | 更新时间 | Actions | Options | ||
|---|---|---|---|---|---|---|
| ZIP | 1.0 | 03 Mar 2026 | 03 Mar 2026 | |||
| ZIP | 1.0 | 03 Mar 2026 | 03 Mar 2026 |
BOM (1)
| 资源标题 | 版本 | 更新时间 | Actions | Options | ||
|---|---|---|---|---|---|---|
| ZIP | 1.0 | 03 Mar 2026 | 03 Mar 2026 |
Schematic Pack (1)
| 资源标题 | 版本 | 更新时间 | Actions | Options | ||
|---|---|---|---|---|---|---|
| 1.0 | 03 Mar 2026 | 03 Mar 2026 |
