产品概要
描述

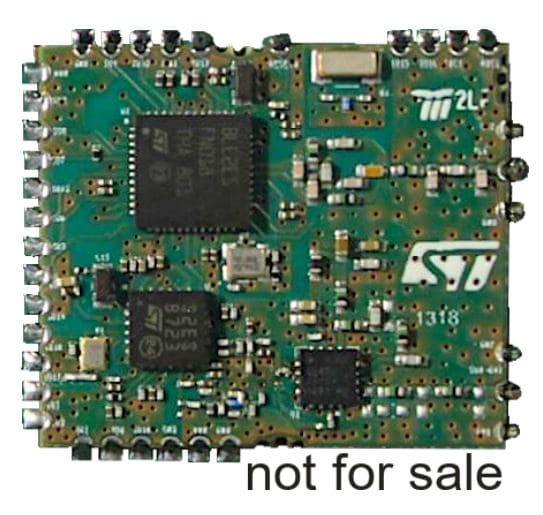

This reference design represents a complete dual radio Sub-1 GHz and BLE solution for Sigfox and LPWAN protocols.
STDES-MONARCH is Sigfox Verified and is provided free of charge with all the necessary design documents. ST also provides several relevant software development kits and environments to help you customize your application.
-
性能一览
- Sigfox Verified (M_0021_459D_01) design with Monarch capability so IoT devices can determine the appropriate RC configuration for the local area
- S2-LP narrow band ultra-low power Sub-1 GHz transceiver in a standalone RF module tuned for 860-940 MHz frequency bands with external power amplifier
- BlueNRG-2 low power Bluetooth® SoC with 256 KB Flash, 24 KB RAM, compliant with Bluetooth® v5.0 specification
- Excellent receiver sensitivity (up to -130 dBm)
- Modulation schemes: 2-FSK, 2-GFSK, 4-FSK, 4-GFSK, OOK, and ASK
- Air data rate from 0.1 to 500 kbps
- Programmable RF output power up to +27 dBm
- Low duty cycle RX/TX operation mode
- 50 Ω ports for Sub-1 GHz radio and optional BLE radio
- Automatic acknowledgment, retransmission and timeout protocol engine
特别推荐
所有资源
| Resource title | 版本 | Latest update | Actions | Details | 下載 |
|---|
Board Manufacturing Specifications (1)
| Resource title | 版本 | Latest update | Actions | Options | ||
|---|---|---|---|---|---|---|
| ZIP | 1.0 | 04 Mar 2020 | 04 Mar 2020 |
BOM (1)
| Resource title | 版本 | Latest update | Actions | Options | ||
|---|---|---|---|---|---|---|
| 1.0 | 04 Mar 2020 | 04 Mar 2020 |
Schematic Pack (1)
| Resource title | 版本 | Latest update | Actions | Options | ||
|---|---|---|---|---|---|---|
| 1.0 | 04 Mar 2020 | 04 Mar 2020 |
Quality and Reliability
| Part Number | Marketing Status | Package | Grade | 符合RoHS级别 | WEEE Compliant | Longevity Commitment | Longevity Starting Date | Material Declaration** |
|---|---|---|---|---|---|---|---|---|
| STDES-MONARCH | Active 产品已量产 | - | Industrial | - | - | - | - | |
STDES-MONARCH
