产品概述
描述

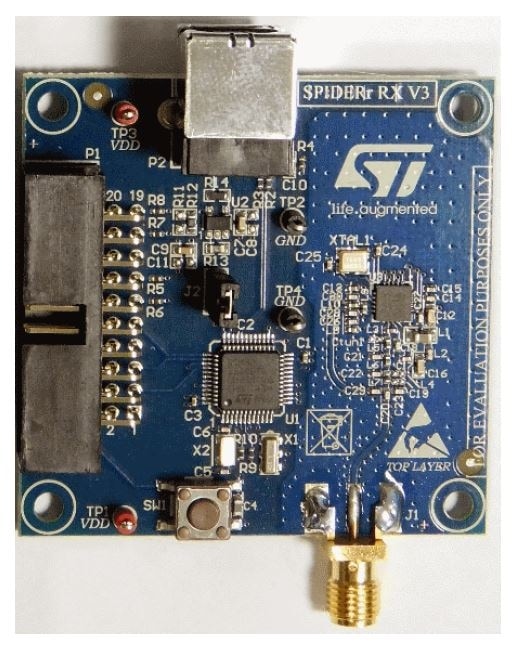

The STDES-ERH002V1 application example mounts a low power microcontroller and RF Sub-1 GHz receiver for wireless transmission.
The STDES-ERH002V1 is part of the STDES-IDS002V1 and STDES-IDS003V1 kits.
Together with the STDES-ERH001V1 or STDES-ERH003V1 companion board included in the STDES-IDS003V1 and STDES-IDS002V1 kits, respectively, they represent an example of autonomous wireless multi sensor nodes powered by TEG or PV panels, respectively.
Both kits include a second STDES-ERH001D companion board which allow the GUI to display the electrical characteristics of the harvesting (TEG or PV panel) module and battery, SPV1050 conversion efficiency and MPPT accuracy.
The dedicated STSW-IDS002V1 provides a user-friendly GUI able to show the data sensed by the STDES-ERH001V1 or STDES-ERH003V1 and received by the STDES-ERH002V1.
-
所有功能
- When used in conjunction with the STDES-ERH001V1 or STDES-ERH003V1 companion board, it forms an autonomous wireless sensor node based on the SPV1050 ULP energy harvester and battery charger
- Compatible with the user-friendly STSW-IDS002V1 software for remote reading of sensors and monitoring of electrical parameters
- All ST components are:
- CE Certified
- RoHS and China RoHS compliant
- WEEE compliant
所有资源
| 资源标题 | 版本 | 更新时间 |
|---|
MCSDK Board Description (1)
| 资源标题 | 版本 | 更新时间 | |||
|---|---|---|---|---|---|
| ZIP | 1.0 | 24 Oct 2018 | 24 Oct 2018 |
物料清单 (1)
| 资源标题 | 版本 | 更新时间 | |||
|---|---|---|---|---|---|
| 1.0 | 24 Oct 2018 | 24 Oct 2018 |
Schematic Pack (1)
| 资源标题 | 版本 | 更新时间 | |||
|---|---|---|---|---|---|
| 1.0 | 24 Oct 2018 | 24 Oct 2018 |
质量与可靠性
| 产品型号 | Marketing Status | 包 | 等级规格 | 符合RoHS级别 | WEEE Compliant | Longevity Commitment | Longevity Starting Date | 材料声明** |
|---|---|---|---|---|---|---|---|---|
| STDES-ERH002V1 | 批量生产 | - | 工业 | - | - | - | - | |
STDES-ERH002V1
Package:
-Material Declaration**:
(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此，它们可能不是100%适用于特定的设备。有关特定设备的信息，请联系 销售支持。
