ST25R3916-DISCO

NRND
Design Win

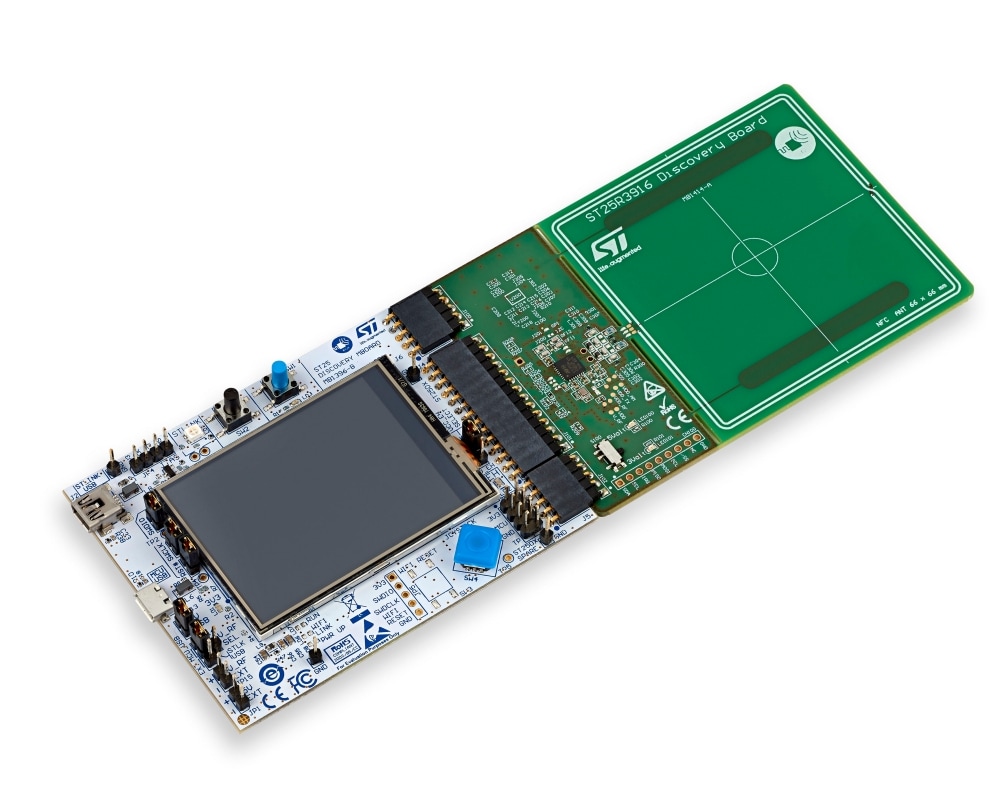

Discovery kit for the ST25R3916 high performance NFC universal device and EMVCo reader

下载数据摘要

产品概述

描述

The ST25R3916-DISCO kit allows the user to evaluate the features and capabilities of the ST25R devices, a series of high performance HF readers.

The ST25R3916-DISCO kit comes with application notes, software applications, drivers, BOM (bill of materials), board schematics, Gerber files and firmware schematics. These documents are downloadable from www.st.com.

  • 所有功能

    • ISO 18092 (NFCIP-1) active and passive initiator and target modes
    • NFC Forum NFC-A, NFC-B, NFC-F and NFC-V reader
    • ISO 14443A, ISO 14443B and ISO15693 reader
    • FeliCa™ reader
    • Support of all five NFC Forum tag types in reader mode
    • NFC Forum Type 3 tag (NFC-F) host card emulation
    • NFC Forum Type 4A tag (NFC-A) host card emulation
    • Stream modes to implement other standard and custom protocols
    • Integrated capacitive sensing system for low power detection of tag presence
    • Integrated inductive sensing system for low power detection of tag presence using phase or amplitude measurement
    • High output power
    • User selectable and automatic gain control
    • Serial peripheral interface (SPI) up to 10 Mb/s
    • I2C with up to 400 kbit/s in Fast-mode, 1 Mb/s in Fast-mode Plus
    • Automatic antenna tuning (AAT) via variable capacitor

您可能还会喜欢...

质量与可靠性

产品型号 Marketing Status 等级规格 符合RoHS级别 WEEE Compliant 材料声明**
ST25R3916-DISCO
NRND
CONTRACTS 工业 Ecopack2 -

ST25R3916-DISCO

Package:

CONTRACTS

Material Declaration**:

Marketing Status

NRND

Package

CONTRACTS

Grade

Industrial

RoHS Compliance Grade

Ecopack2

(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此,它们可能不是100%适用于特定的设备。有关特定设备的信息,请联系 销售支持
