ST25DV-PWM NFC/RFID标签IC的探索套件

下载数据摘要 Order Direct

产品概述

描述

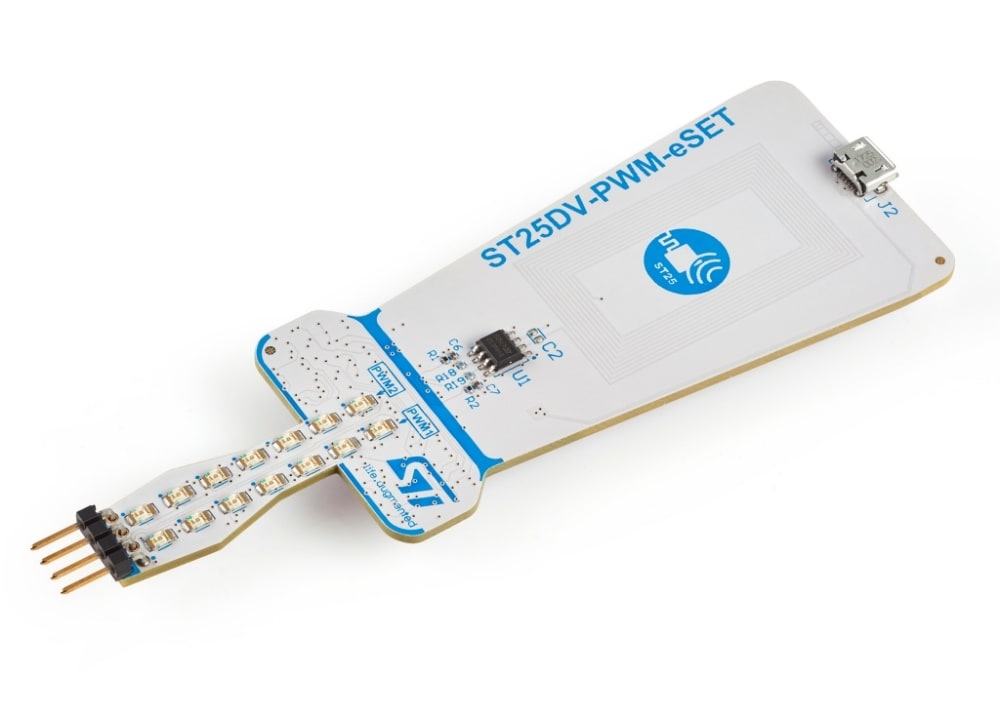

The ST25DV-PWM-eSET is a dynamic NFC tag evaluation board based on the ST25DV02K-W2 device, an NFC/RFID tag IC with PWM outputs embedding a 2-Kbit EEPROM that can be partitioned for use-case flexibility.

The PWM output can be programmed independently and securely, allowing the user to address a large number of applications. The IC provides live update of PWM parameters by contactless interface, extending the user experience. The device can be operated from a 13.56 MHz RFID reader or by any NFC mobile phone. The contactless interface is based on ISO/IEC 15693 and NFC Forum Type 5 tag standards.

  • 所有功能

    • Ready-to-use printed circuit board with:
      • ST25DV02K-W2 NFC/RFID tag IC in SO8N ECOPACK2® package
      • 22 x 38 mm2 single layer inductive antenna, etched on the PCB
      • Two LEDs illustrating duty cycle of PWM outputs
    • Contactless interface
      • Based on ISO/IEC 15693 and NFC Forum Type 5
      • 28.5 pF internal tuning capacitance
    • Memory and data protection
      • 2-Kbit EEPROM
      • Up to four independent areas
      • TruST25™ digital signature mechanism for authentication
    • FCC verified
    • RoHS compliant

质量与可靠性

产品型号 Marketing Status 等级规格 符合RoHS级别 WEEE Compliant 材料声明**
ST25DV-PWM-eSET
批量生产
CONTRACTS 工业 Ecopack2 -

ST25DV-PWM-eSET

Package:

CONTRACTS

Material Declaration**:

Marketing Status

批量生产

Package

CONTRACTS

Grade

Industrial

RoHS Compliance Grade

Ecopack2

(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此,它们可能不是100%适用于特定的设备。有关特定设备的信息,请联系 销售支持
