ST25-TAG-BAG-UT1
Active
Design Win
Set of ST25TV and ST25TN series NFC tags

储存到myST
Download databrief
Order Direct

产品概要

描述

The ST25-TAG-BAG-UT1 is a ready-to-use tag set, containing tags based on NFC Forum Type 5 (ST25TV02KC) and NFC Forum Type 2 (ST25TN01K) tag ICs. These ICs are combined with antennas of different size and material, with advanced designs (like tamper detect), to address different applications.

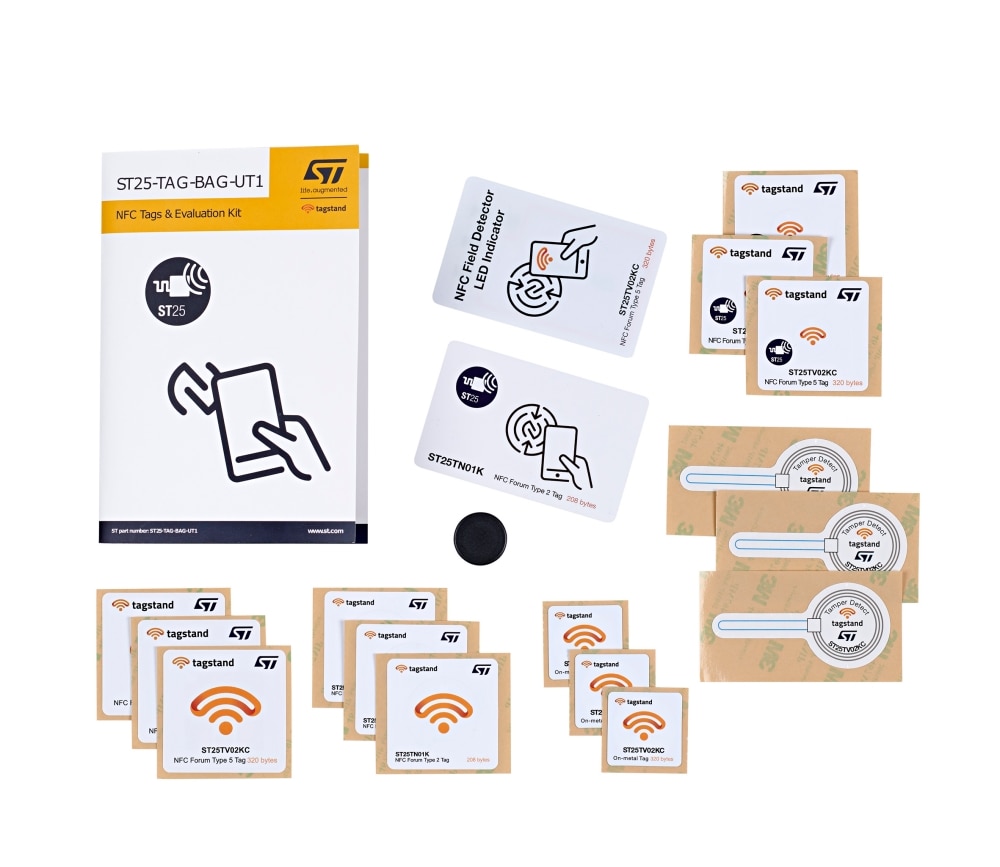

st25-tag-bag-ut1 kit
st25-tag-bag-ut1 kit

The set is intended for evaluation of the ST25TV and ST25TN series NFC tags, belonging to the ST25T product family, offering long (ISO/IEC 15693) NFC/RFID and short range (ISO/IEC 14443) tags with advanced features and 1 K- to 2 K-bit memory sizes.

More info on devices of the ST25TV and ST25TN series can be found on the ST25TV and ST25TN webpages.

  • 性能一览

    • Three ST25TV02KC, 23 pF, tamper enabled label, 35 mm diameter
    • Three ST25TN01K, 50 pF, smart label, 30 mm diameter
    • Three ST25TV02KC, 99 pF, smart label, 17 mm diameter
    • Three ST25TV02KC, 23 pF, smart label, 50 mm x 50 mm
    • Three ST25TV02KC, 23 pF, on-metal tag, 30 mm x 30 mm
    • One ST25TV02KC, 23 pF, button tag, 22 mm diameter
    • One ST25TN01K, 50 pF, card, 85 mm x 54 mm
    • One ST25TV02KC, 23 pF, NFC field detector with LED indicator, 85 mm x 54 mm
    阅读更多信息 阅读较少信息

Quality and Reliability

Part Number Marketing Status Package Grade 符合RoHS级别 WEEE Compliant Longevity Commitment Longevity Starting Date Material Declaration**
ST25-TAG-BAG-UT1
Active
CONTRACTS Industrial Ecopack2 - - -

ST25-TAG-BAG-UT1

Package:

CONTRACTS

Material Declaration**:

More Info

Marketing Status

Active

Package

CONTRACTS

Grade

Industrial

RoHS Compliance Grade

Ecopack2
