产品概要
描述
The ST25-TAG-BAG-AB is a ready-to-use tag set, containing tags based on NFC Forum Type 5 tag ICs (ST25TV512C and ST25TV02KC). These ICs are combined with antennas of different size and material, with advanced designs (like tamper detect), to address different applications.
The set is intended for evaluation of the ST25TV series NFC tags, belonging to the ST25T product family, offering long range (ISO/IEC 15693) NFC/RFID tags with advanced features and 512- and 2 K-bit memory sizes.
More info on devices of the ST25TV series can be found on the ST25TV webpage.
-

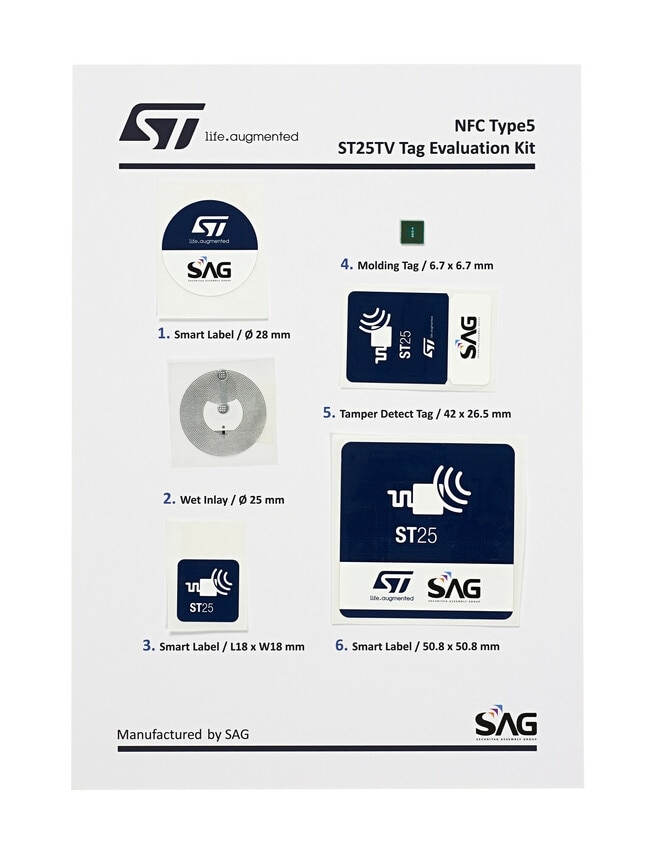

性能一览
- One ST25TV512C smart label, 28 mm diameter
- One ST25TV512C wet inlay, 28 mm diameter
- One ST25TV02KC smart label, 18 mm x 18 mm
- One ST25TV02KC molding tag, 7.5 mm x 7.5 mm
- One ST25TV02KC tamper detect tag, 42 mm x 26.5 mm
- One ST25TV02KC smart label, 50.8 mm x 50.8 mm
特别推荐
Quality and Reliability
| Part Number | Marketing Status | Package | Grade | 符合RoHS级别 | WEEE Compliant | Longevity Commitment | Longevity Starting Date | Material Declaration** |
|---|---|---|---|---|---|---|---|---|
| ST25-TAG-BAG-AB | Active 产品已量产 | CONTRACTS | Industrial | Ecopack2 | - | - | - | |
ST25-TAG-BAG-AB
Package:
CONTRACTSMaterial Declaration**:
(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此，它们可能不是100%适用于特定的设备。有关特定设备的信息，请联系 销售支持。
You’re now leaving st.com and will be re-directed to our Partner’s website.
For the latest innovations and solutions from ST, sign up for our newsletters.
Sample & Buy
| Part Number | 供货状态 | Budgetary Price (US$)*/Qty | 从ST订购 | Order from distributors | Package | Packing Type | RoHS | Country of Origin | ECCN (US) | ECCN (EU) | Supplier | Core Product | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ST25-TAG-BAG-AB | | | distributors 无法联系到经销商，请联系我们的销售办事处 |
|
|
ST25-TAG-BAG-AB Active
