产品概要
描述

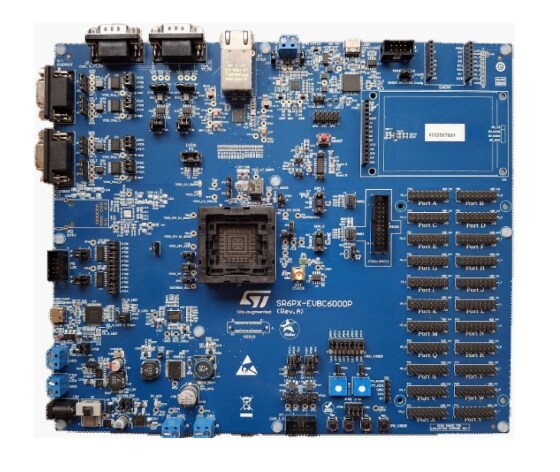

The SR6PX-EVBC6000P is the evaluation board of the Stellar P series automotive MCU in BGA 476 package enabling the access to all the functionalities of the product.
Being based on socket, it can be the best solution to start prototyping any automotive application.
The board provides automotive Ethernet interfaces, FlexRay channels, FDCAN channels, LINFlexD, UART, I²C, OctalSPI multichip package memory and SPI standard communication interface, as well as LEDs, buttons, and potentiometers for user controls.
ST’s StellarStudio, an Eclipse-based integrated development environment, provides a comprehensive framework to design, build, and deploy embedded applications. StellarStudio is available for free download from www.st.com and includes multiple free application examples ready to use on the SR6PX-EVBC6000P board.
-
性能一览
- Socket based evaluation board for Stellar P series automotive MCU in BGA 476 package
- Selectable clock source:
- 40 MHz crystal main oscillator
- 8 MHz oscillator
- Clock input through SMA connector
- Debug interfaces:
- MIPI10 connector for JTAG main DAP interface
- Arm® JTAG 20 connector for main DAP interface
- MIPI10 connector for secondary DAP interface
- Two 2x6-pin header connectors for SIPI interface
- All MCU signals are readily accessible at a port-ordered group of 0.1” pitch headers
- 2xUSB 2.0 Hi-Speed to JTAG/UART interfaces
- USB to UART: 2xUART channels (USB Type-C®)
- Integrated USB programmer/debugger + 1xUART channel (USB Type-C®)
- 4x CAN-FD interfaces: 2 channels with DB9 + 2 channels with a 2x4 header connector
- 4x LINFlexD interfaces with a 2x4 header connector
- 4x FlexRay: 2 DB9 connectors
- Ethernet interfaces:
- Ethernet 0: 1xRGMII 1 Gb/s with RJ45 connector
- 10BASE-T1S: 1x 10BASE-T1S single pair Ethernet MAC-PHY with SPI
- OctalSPI: 256 Mb HyperFlash™ and 64 Mbit HyperRAM in a multichip package (MCP)
- I²C interface: 4 channels with a 2x4 header connector
- User section: 3 push buttons; 8 LEDs; 2 potentiometers
- Extension module port (option):
- 1x external module connector (DSPI, I²C, UART, GPIO, ANx)
- 1x LCD DisplayPort
- 12 V external power supply
