产品概述
描述

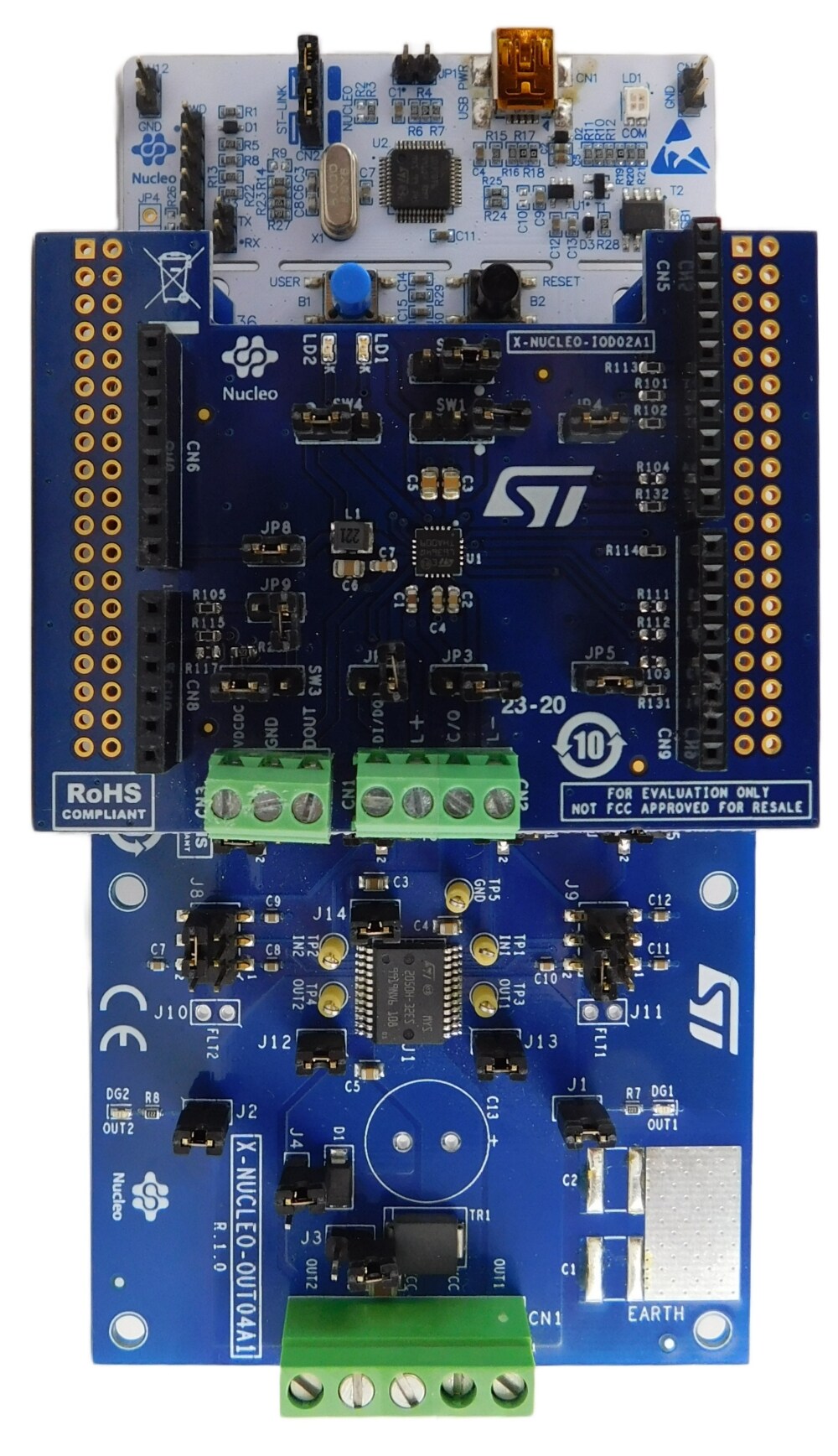

P-NUCLEO-IOD04A1是一款STM32 Nucleo组合套件，由堆叠在NUCLEO L073RZ开发板上的X-NUCLEO IOD02A1和X-NUCLEO-OUT04A1扩展板组成。
X-NUCLEO-IOD02A1配备了L6364Q IO-Link设备收发器，用于与IO-Link主机进行物理连接，而X-NUCLEO-OUT04A1则是一款面向STM32的工业数字输出扩展板。NUCLEO-L073RZ具有运行FP-IND-IODOUT1功能包所需的硬件资源，并可以控制收发器和电源开关。
FP-IND-IODOUT1将IO-Link演示协议栈库（源自X-CUBE-IOD02）与X-CUBE-IPS结合，提供了一个IO-Link设备传感器和执行器节点的示例。
P-NUCLEO-IOD04A1既可用于评估，也可作为开发环境。
STM32 Nucleo套件为开发IO-Link和SIO应用提供了一种经济且易用的解决方案，可评估IPS2050H-32的高侧功能，同时验证STM32L073RZ的计算性能。
-
所有功能
- 基于L6364Q器件的X-NUCLEO-IOD02A1 IO-Link收发器扩展板
- 面向STM32 Nucleo的X-NUCLEO-OUT04A1工业数字输出扩展板，提供强大且灵活的环境，用于评估数字输出模块中IPS2050H-32（双通道高侧智能功率固态继电器）的驱动和诊断能力，该模块可连接（最高）5.7 A的工业负载。
- NUCLEO-L073RZ开发板集成了STM32L073xx系列的超低功耗32位微控制器STM32L073RZ，该微控制器融合了通用串行总线（USB 2.0无晶振）的连接功能、高性能Arm Cortex-M0+ 32位RISC内核（工作频率32 MHz）、存储器保护单元 (MPU)、高速嵌入式内存（包括最高192 KB的Flash程序存储器、6 KB数据EEPROM和20 KB RAM），以及丰富的增强型I/O和外设。
- FP-IND-IODOUT1功能包包含适用于X-NUCLEO-IOD02A1的IO-Link演示协议栈以及X-NUCLEO-OUT04A1的控制软件。
您可能还会喜欢...
X-NUCLEO-IOD02A1
Dual channel IO-Link device expansion board based on L6364Q for STM32 Nucleo
FP-IND-IODOUT1
STM32Cube功能包，面向控制工业IPS的IO-Link应用
NUCLEO-L073RZ
采用STM32L073RZ MCU的STM32 Nucleo-64开发板，支持Arduino和ST morpho连接
