产品概述
描述

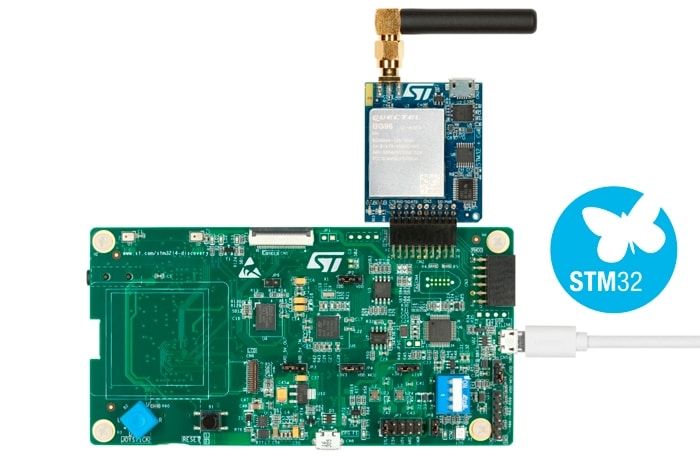

The STM32 Discovery pack for LTE IoT cellular to cloud (P-L496G-CELL02) is a turnkey development platform for cellular and cloud technology-based solutions.
The pack contains an STM32L496AG‑based low-power Discovery main board with preloaded firmware and an STMod+ cellular LTE IoT worldwide expansion board with an antenna.
-
所有功能
- STM32L496AGI6 Arm® Cortex®‑M3 core‑based microcontroller with 1 Mbyte of flash memory and 320 Kbytes of RAM in a UFBGA169 package
- USB OTG HS
- On-board current measurement
- SAI audio codec
- ST‑MEMS digital microphones
- 8‑Mbit PSRAM
- Two user LEDs
- User and reset push-buttons
- 4‑direction joystick with selection button
- Board connectors:
- 8‑bit camera
- LCD flat cable
- USB Micro-B
- Stereo headset jack including analog microphone input
- microSD™ card
- ARDUINO® Uno V3 expansion connector
- STMod+ expansion connector
- Board expansion features:
- Quectel BG96 worldwide cellular modem LTE Cat M1/Cat NB1/EGPRS module 300 kbps downlink, 375 kbps uplink
- Modem reset red LED and modem signaling green LED
- Switchable SIM interface: eSIM and micro SIM
- Pulse SMA antenna for frequency ranges: 824 / 900 / 1800 / 1900 / 2100 MHz. May this antenna not be suitable for your LTE band, use the Pulse SPDA24700 antenna instead.
- Flexible power-supply options: ST-LINK USB VBUS, USB connector, or external sources
- On-board ST-LINK/V2-1 debugger/programmer with USB re-enumeration capability: mass storage, Virtual COM port, and debug port
- Comprehensive free software libraries and examples available with the STM32Cube MCU Package
- Support of a wide choice of Integrated Development Environments (IDEs) including IAR Embedded Workbench®, MDK-ARM, and STM32CubeIDE
