产品概述
描述

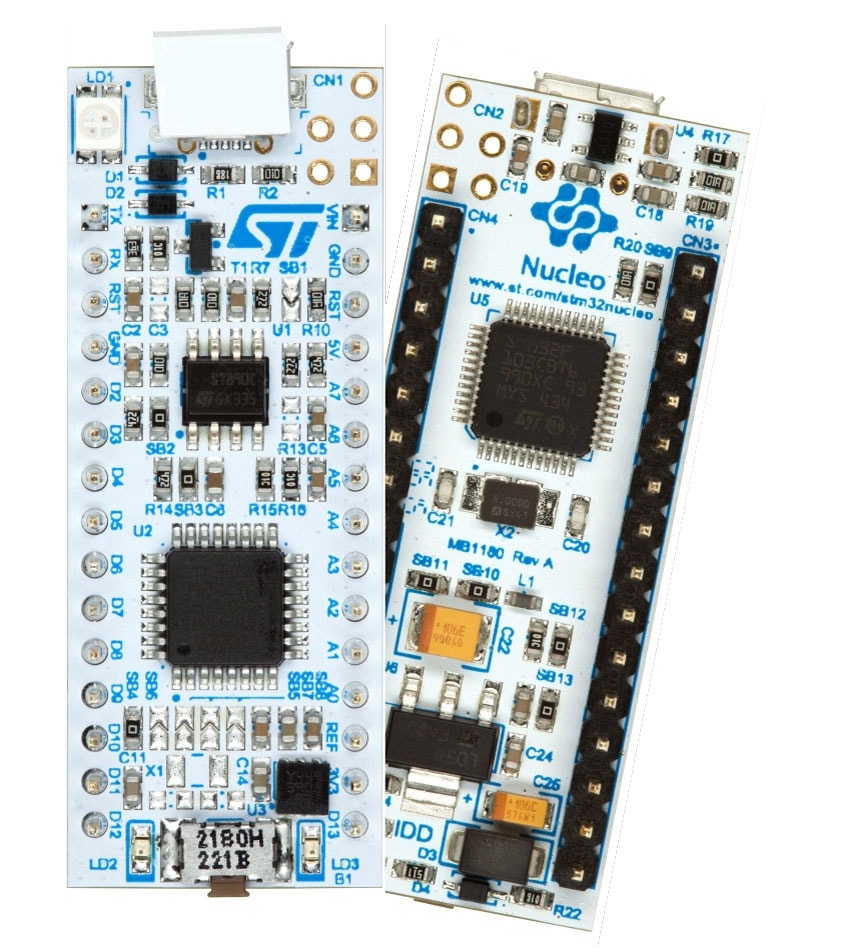

The STM32 Nucleo-32 board provides an affordable and flexible way for users to try out new concepts and build prototypes with any STM32 microcontroller line in 32-pin packages, choosing from the various combinations of performance, power consumption and features.The Arduino™nano connectivity makes it easy to expand the functionality of the STM32 Nucleo open development platform with a choice of specialized shields.The STM32 Nucleo-32 board does not require any separate probe as it integrates the ST-LINK/V2-1 debugger/programmer.The STM32 Nucleo-32 board comes with the STM32 comprehensive software HAL library together with various packaged software examples, as well as direct access to mbed online resources.
-
所有功能
- STM32 microcontrollers in 32-pin packages
- extension with Arduino™nano connectivity
- mbed-enabled (http://mbed.org)
- on-board ST-LINK/V2-1 debugger/programmer
- USB reenumeration capability: three different interfaces supported on USB:
- Virtual Com port
- mass storage
- debug port
- flexible board power supply:
- USB VBUS
- external source
- three LEDs:
- USB communication (LD1), power LED (LD2), user LED (LD3)
- reset push button
- supported by wide choice of Integrated Development Environments (IDEs) including IAR™, Keil®, GCC-based IDEs (AC6 SW4STM32, ...)
您可能还会喜欢...
精选 视频
This Video will present Nucleo, Nucleo-32 and give details about Nucleo-32. Nucleo 32-pin is compact but compatible with less shield boards.
ARM mbed Integrated Development Environment using STM32 Nucleo platform
特别推荐
所有资源
| 资源标题 | 版本 | 更新时间 |
|---|
Board Manufacturing Specifications (1)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| ZIP | 2.0 | 13 Jan 2016 | 13 Jan 2016 |
物料清单 (1)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| ZIP | 3.0 | 13 Jan 2016 | 13 Jan 2016 |
Schematic Pack (1)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| ZIP | 2.0 | 13 Jan 2016 | 13 Jan 2016 |
质量与可靠性
| 产品型号 | Marketing Status | 符合RoHS级别 | 材料声明** |
|---|---|---|---|
| NUCLEO-F303K8 | 批量生产 | Ecopack1 | |
NUCLEO-F303K8
Package:
Ecopack1Material Declaration**:
(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此，它们可能不是100%适用于特定的设备。有关特定设备的信息，请联系 销售支持。
样片和购买
| 产品型号 | 供货状态 | Budgetary Price (US$)*/Qty | 从ST订购 | Order from distributors | 包 | 包装类型 | RoHS | Country of Origin | ECCN (US) | ECCN (EU) | 供应商 | Specific features | WEEE Compliant | 核心产品 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NUCLEO-F303K8 | | | distributors 无法联系到经销商，请联系我们的销售办事处 |
|
|
|
|
NUCLEO-F303K8 批量生产
