NUCLEO-F042K6

批量生产
Design Win

采用STM32F042K6 MCU的STM32 Nucleo-32开发板,支持Arduino连接

下载数据摘要 Order Direct

产品概述

描述

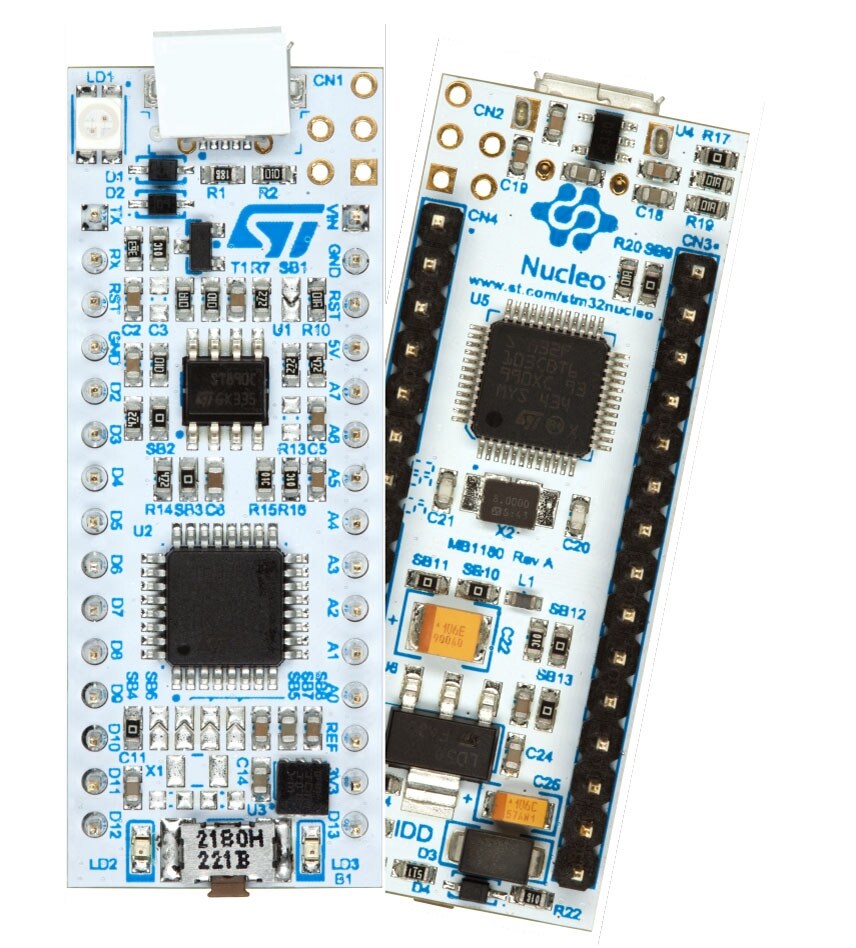

The STM32 Nucleo-32 board provides an affordable and flexible way for users to try out new concepts and build prototypes with any STM32 microcontroller line in 32-pin packages, choosing from the various combinations of performance, power consumption and features.The Arduinonano connectivity makes it easy to expand the functionality of the STM32 Nucleo open development platform with a choice of specialized shields.The STM32 Nucleo-32 board does not require any separate probe as it integrates the ST-LINK/V2-1 debugger/programmer.The STM32 Nucleo-32 board comes with the STM32 comprehensive software HAL library together with various packaged software examples, as well as direct access to mbed online resources.

  • 所有功能

    • STM32 microcontrollers in 32-pin packages
    • extension with Arduinonano connectivity
    • mbed-enabled (http://mbed.org)
    • on-board ST-LINK/V2-1 debugger/programmer
    • USB reenumeration capability: three different interfaces supported on USB:
      • Virtual Com port
      • mass storage
      • debug port
    • flexible board power supply:
      • USB VBUS
      • external source
    • three LEDs:
      • USB communication (LD1), power LED (LD2), user LED (LD3)
    • reset push button
    • supported by wide choice of Integrated Development Environments (IDEs) including IAR, Keil®, GCC-based IDEs (AC6 SW4STM32, ...)

您可能还会喜欢...

STM32 MCU开发者社区
提供STM32 MCU开发人员所需的一切。

质量与可靠性

产品型号 Marketing Status 符合RoHS级别 材料声明**
NUCLEO-F042K6
批量生产
Ecopack1

NUCLEO-F042K6

Package:

Ecopack1

Material Declaration**:

Marketing Status

批量生产

RoHS Compliance Grade

Ecopack1

(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此,它们可能不是100%适用于特定的设备。有关特定设备的信息,请联系 销售支持
