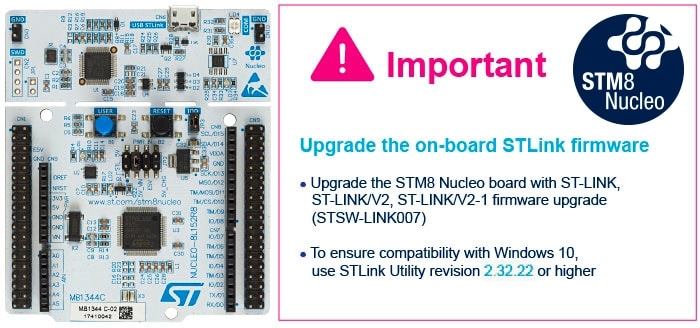

NUCLEO-8L152R8

NRND
Design Win

采用STM8L152R8 MCU的STM8 Nucleo-64开发板,支持Arduino和ST morpho连接

下载数据摘要

产品概述

描述

The STM8 Nucleo-64 boards provide an affordable and flexible way for users to try out new concepts and build prototypes with the LQFP64-packaged STM8 microcontroller, which provides various combinations of performance, power consumption and features.

The Arduino™ Uno V3 connectivity support, and the ST morpho headers allow easy expansion of the Nucleo open development platform functionality with a wide choice of specialized shields.

The STM8 Nucleo-64 boards do not require any separate probe as they integrate the ST-LINK/V2-1 debugger and programmer.

  • 所有功能

    • STM8 microcontroller in LQFP64 package
    • Flash memory size:
      • 64 Kbytes for STM8L152R8T6
      • 128 Kbytes for STM8S208RBT6
    • 4 LEDs
      • USB communication (LD4)
      • 5 V STLINK (LD3)
      • User (LD2)
      • Power (LD1)
    • 2 push-buttons: USER and RESET
    • 32.768 kHz LSE crystal oscillator for the NUCLEO-8L152R8 only
    • Board expansion connectors:
      • Arduino Uno V3
      • ST morpho extension pin headers for full access to all STM8 I/Os
    • Flexible board power-supply:
      • USB VBUS or external source (3.3 V, 5 V, 7 - 12 V)
      • Power management access point
    • On-board ST-LINK/V2-1 debugger and programmer with SWIM connector
    • USB re-enumeration capability. Three different interfaces supported: Virtual COM port, mass storage, debug port
    • Comprehensive free software STM8 libraries including a variety of software examples
    • Support of a wide choice of Integrated Development Environments (IDEs) including STMicroelectronics free STVD-STM8 (using Cosmic toolchain), IAR™, Cosmic free IDEA

您可能还会喜欢...

质量与可靠性

产品型号 Marketing Status 符合RoHS级别 材料声明**
NUCLEO-8L152R8
NRND
Ecopack1

NUCLEO-8L152R8

Package:

Ecopack1

Material Declaration**:

Marketing Status

NRND

RoHS Compliance Grade

Ecopack1

(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此,它们可能不是100%适用于特定的设备。有关特定设备的信息,请联系 销售支持
