产品概述
描述

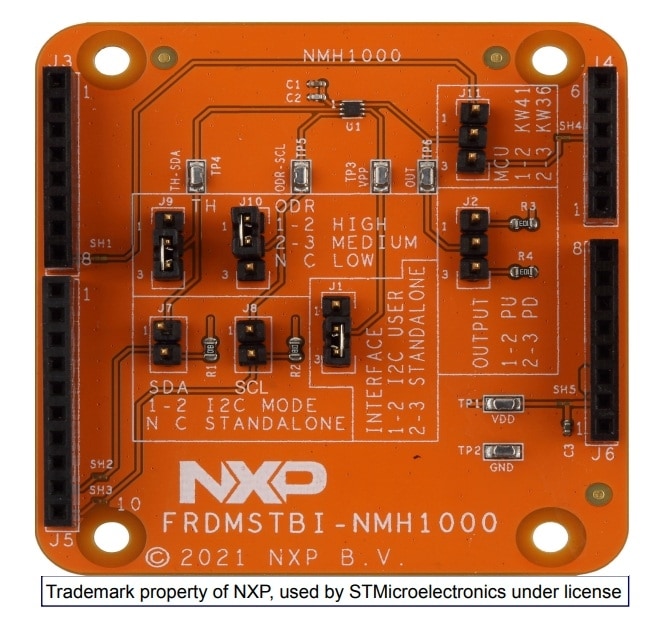

The FRDMSTBI-NMH1000 is an evaluation board comprised of all necessary headers, jumpers, and signal test points to quickly evaluate the NMH1000 magnetic sensor.
The FRDMSTBI-NMH1000 sensor shield boards can be kitted with FRDM-KE15Z to enable quick customer evaluation of NMH1000 magnetic switch sensor.
-
所有功能
- Sensor evaluation board for NMH1000 magnetic switch sensor
- Enables quick sensor evaluation and helps accelerate quick prototyping and development
- Compatible with Arduino® and most NXP Freedom development boards
- Supports hardware configurability to switch between standalone mode vs I2C mode
- Test points on the board
所有资源
| 资源标题 | 版本 | 更新时间 |
|---|
Board Manufacturing Specifications (1)
| 资源标题 | 版本 | 更新时间 | |||
|---|---|---|---|---|---|
| ZIP | 1.0 | 27 Jan 2026 | 27 Jan 2026 |
质量与可靠性
| 料号 | Marketing Status | 包 | 等级规格 | 符合RoHS级别 | WEEE Compliant | Longevity Commitment | Longevity Starting Date | 材料声明** |
|---|---|---|---|---|---|---|---|---|
| FRDMSTBI-NMH1000 | 评估 | CARD | 工业 | Ecopack2 | - | - | - | |
FRDMSTBI-NMH1000
Package:
CARDMaterial Declaration**:
(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此，它们可能不是100%适用于特定的设备。有关特定设备的信息，请联系 销售支持。
