产品概述
描述

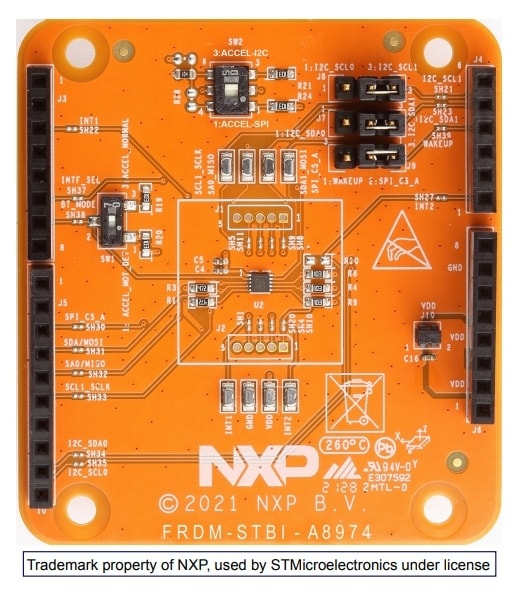

The FRDM-STBI-A8974 is a sensor add-on/companion shield board for FXLS8974CF 3-axis low-power motion wake accelerometer.
FRDM-STBI-A8974 sensor shield board is kitted with an FRDM MCU (FRDM-K22F) board to enable quick customer evaluation of FXLS8974CF using sensor toolbox enablement software and tools.
-
所有功能
- Sensor evaluation board for FXLS8974CF 3-axis ultra-low-power motion wake-up accelerometer for industrial and medical IOT applications, offered as a sensor kit with FRDM-K22F
- Enables quick sensor evaluation and helps accelerate quick prototyping and development using NXP sensors
- Compatible with Arduino® and most NXP Freedom development boards
- Supports I2C and SPI communication interface with host MCU
- Supports hardware configurability to switch between accelerometer mode (normal vs. motion detect) and I2C/SPI interface mode
- Multiple test points on the board
所有资源
| 资源标题 | 版本 | 更新时间 |
|---|
Board Manufacturing Specifications (1)
| 资源标题 | 版本 | 更新时间 | |||
|---|---|---|---|---|---|
| ZIP | 1.0 | 27 Jan 2026 | 27 Jan 2026 |
质量与可靠性
| 料号 | Marketing Status | 包 | 等级规格 | 符合RoHS级别 | WEEE Compliant | Longevity Commitment | Longevity Starting Date | 材料声明** |
|---|---|---|---|---|---|---|---|---|
| FRDM-STBI-A8974 | 评估 | CARD | 工业 | Ecopack2 | - | - | - | |
