产品概要
描述

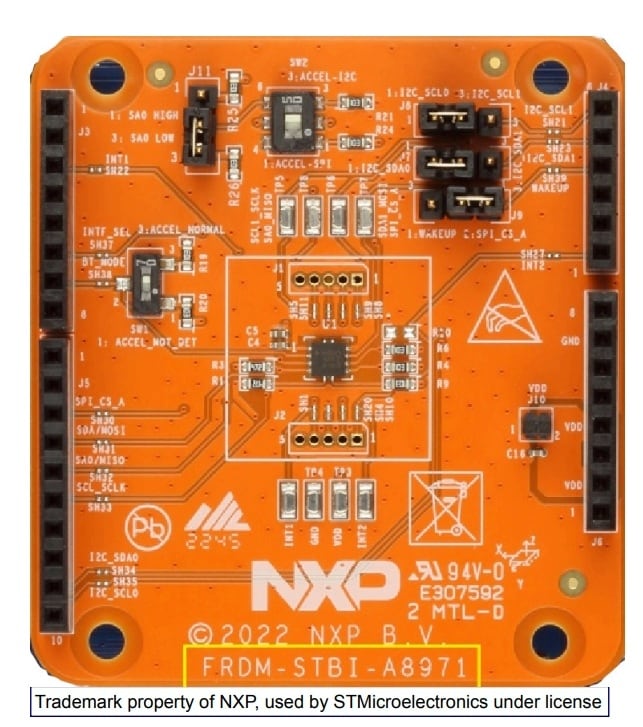

The FRDM-STBI-A8971 is a sensor add-on/expansion shield board for FXLS8971CF 3-axis low-power accelerometer with excellent offset and sensitivity stability over temperature.
The FRDM-STBI-A8971 sensor shield board is kitted with a LPC55S16-EVK or FRDM-K22F MCU board to enable quick customer evaluation of FXLS8971CF using sensor toolbox enablement SW and tools.
-
性能一览
- Sensor evaluation board for FXLS8971CF 3-axis accelerometer designed for use in a wide range of industrial and medical IOT applications that require better offset and sensitivity stability over temperature. Offered as sensor kit with LPC55S16-EVK or FRDM-K22F
- Enables quick sensor evaluation and helps accelerate quick prototyping and development using FXLS8971CF 3-axis accelerometer
- Compatible with Arduino® and most NXP Freedom development boards
- Supports I2C and SPI communication interface with host MCU
- Supports hardware configurability to switch between accelerometer mode (normal vs. motion detect) and I2C/SPI interface mode
- Supports multiple test points on shield board
所有资源
| Resource title | 版本 | Latest update | Actions | Details | 下載 |
|---|
Board Manufacturing Specifications (1)
| Resource title | 版本 | Latest update | Actions | Options | ||
|---|---|---|---|---|---|---|
| ZIP | 1.0 | 27 Jan 2026 | 27 Jan 2026 |
Quality and Reliability
| Part Number | Marketing Status | Package | Grade | 符合RoHS级别 | WEEE Compliant | Longevity Commitment | Longevity Starting Date | Material Declaration** |
|---|---|---|---|---|---|---|---|---|
| FRDM-STBI-A8971 | Active 产品已量产 | CARD | Industrial | Ecopack2 | - | - | - | |
