产品概要
描述

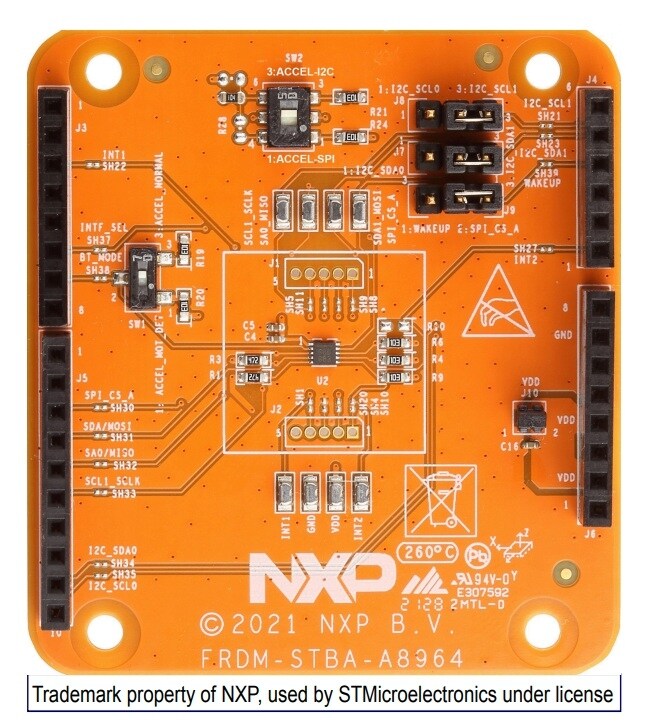

The FRDM-STBA-A8964 is a sensor add-on/companion shield board for FXLS8964AF 3-axis low-power motion wake accelerometer.
FRDM-STBA-A8964 sensor shield board can be kitted with a FRDM MCU (FRDM-K22F) board to enable quick customer evaluation of FXLS8964AF using sensor toolbox enablement SW and tools.
-
性能一览
- Sensor evaluation board for FXLS8964AF, also offered as custom sensor kit with FRDM-K22F.
- Enables quick sensor evaluation and helps accelerate quick prototyping and development using NXP sensors
- Compatible with Arduino® and most NXP Freedom development boards
- Supports I2C and SPI communication interface with host MCU
- Supports hardware configurability to switch between accelerometer mode (normal vs. motion detect) and I2C/SPI interface mode
- Multiple test points
所有资源
| Resource title | 版本 | Latest update | Actions | Details | 下載 |
|---|
Board Manufacturing Specifications (1)
| Resource title | 版本 | Latest update | Actions | Options | ||
|---|---|---|---|---|---|---|
| ZIP | 1.0 | 27 Jan 2026 | 27 Jan 2026 |
Quality and Reliability
| Part Number | Marketing Status | Package | Grade | 符合RoHS级别 | WEEE Compliant | Longevity Commitment | Longevity Starting Date | Material Declaration** |
|---|---|---|---|---|---|---|---|---|
| FRDM-STBA-A8964 | Active 产品已量产 | CARD | Industrial | Ecopack2 | - | - | - | |
FRDM-STBA-A8964
Package:
CARDMaterial Declaration**:
