产品概述
描述
The EVSTDRVG611MC is a three-phase inverter based on the STDRIVEG611 half-bridge GaN gate driver, 75 mΩ 650 V e-mode GaN HEMT, and the high-performance STM32G431RBT3 with Arm Cortex®-M4 MCU at 170 MHz.
The board can be used for sensorless field-oriented control (FOC), allowing driving permanent magnet synchronous motors (PMSMs) and brushless DC (BLDC) motors to cover a wide range of applications, such as refrigerator compressors, pumps, fans, and industrial appliances.

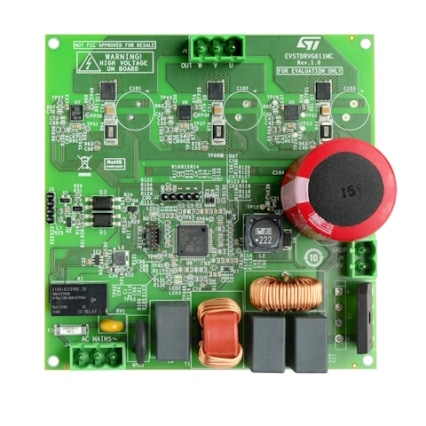

The EVSTDRVG611MC is 109 x 110 mm wide, 2 layers, 2 Oz, FR-4 PCB, resulting in overall 8.5 °C/W Rth(J‑A) (equivalent to 50°C/W for each GaN) in still air.
-
所有功能
- Three-phase topology featuring the STDRIVEG611 GaN gate driver
- 75 mΩ typ., 650 V e-mode GaN HEMT in PowerFLAT 5x6 HV package with Kelvin source
- STM32G431RBT3 microcontroller for high analog integration
- 3-shunt topology for sensorless field-oriented control (FOC)
- 230 V AC mains line input filter and rectifier
- Typical power up to 600 W, 40 kHz
- Tuned at 10 V/ns dV/dt for EMI and motor reliability
- Interfaces: UART, encoder, Hall position sensors, SWD
- Shunt amplifiers integrated in STM32G4
- Overcurrent protection
