EVSPIN32F06Q2S1

批量生产
Design Win

3-phase inverter based on STSPIN32F0602

下载数据摘要 Order Direct

产品概述

描述

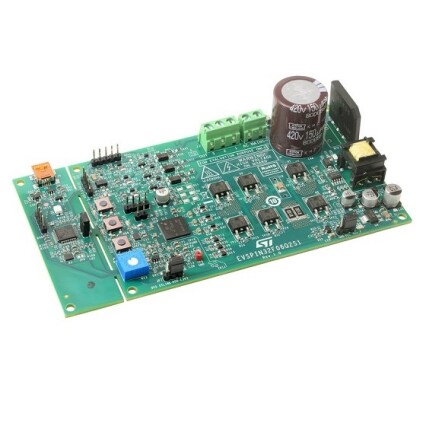

The EVSPIN32F06Q2S1 board is a 3-phase complete inverter based on the STSPIN32F0602 controller, which embeds a 3‑phase 600 V gate driver and a Cortex®-M0 STM32 MCU. The power stage features STD18N65M5 MOSFET, but can be populated with any IGBT or Power MOSFET in DPAK or powerFLAT 8x8 HV package.

The board has a single-shunt sensing topology, and both sensored and sensorless FOC and 6-step control algorithms can be implemented. This allows driving permanent magnet synchronous motors (PMSMs) and brushless DC (BLDC) motors.

The evaluation board is compatible with a wide range input voltage from 35 VAC (50 VDC) to 280 VAC (400 VDC), and includes a power supply stage with the VIPER06XS in flyback configuration to generate +15 V and +3.3 V supply voltage required by the application.

Debug and configuration of FW can be performed with standard STM32 tools through the detachable ST-LINK‑debugger. SWD and UART TX‑RX connectors are also available.

  • 所有功能

    • Input voltage from 35 VAC (50 VDC) to 280 VAC (400 VDC)
    • STD18N65M5 MOS power stage featuring:
      • V(DS) @ TJmax= 710 V
      • RDS(on) max. = 0.220 Ω
    • Overcurrent threshold set to 8.5 Apeak
    • Dual footprint for IGBT/MOSFET package:
      • DPAK
      • PowerFlat 8x8 HV
    • Single-shunt current sensing, suitable for:
      • Sensored or sensorless 6-step algorithm
      • Sensored or sensorless single-shunt vector (FOC) algorithm
    • Smart shutdown overcurrent protection
    • Digital Hall sensors and encoder input
    • Bus voltage sensing
    • 15 V VCC and 3.3 V VDD supplies
    • Embedded ST-LINK/V2-1
    • Easy user interface with buttons and trimmer
    • RoHS compliant
