产品概述
描述

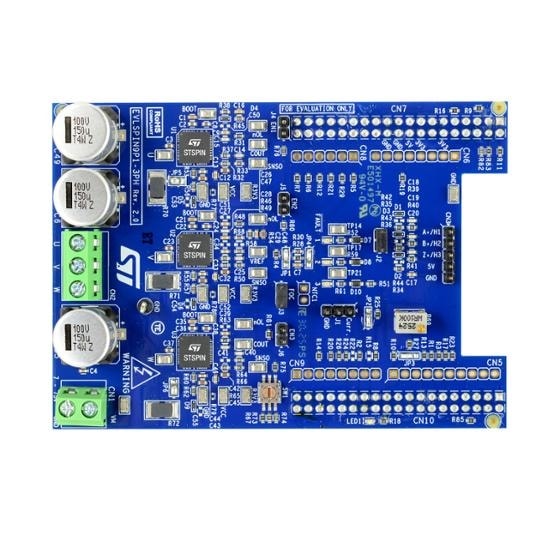

The EVLSPIN9P1-3PH demonstration board is a three-phase power board, which allows to evaluate all STSPIN9P12 features.
The board is designed to support a three-shunt or single-shunt current sensing topology.
The board can be stacked with an X-NUCLEO MCU control board through ST morpho connectors and drive BLDC/PMSM motors exploiting off-the-shelf firmware libraries.
The STSPIN9P12 is a high-density power driver integrating gate drivers and two N-channel power MOSFETs in half-bridge configuration.
The device has dedicated input pins for each output and one enable pin. The logic inputs are CMOS/TTL compatible down to 3.3 V for easy interfacing with control devices.
-
所有功能
- 3-phase driver for BLDC/PMSM motors
- STSPIN9P12 power system-in-package integrating gate driver and high-current power MOSFETs with RDS(ON) = 27 mΩ
- 7 V to 75 V operating voltage
- Up to 10 Arms output current
- Operating frequency up to 100 kHz
- Programmable output slew rate
- Compatible with STM32 Nucleo boards
- Fully compatible with STM32 motor control SDK
- Equipped with ST ST morpho
- Three-shunt or single-shunt configurable jumpers for motor current sensing topology
- Hall / encoder motor sensors connector and circuit
- Potentiometer available for speed regulation
- User LED
- Open-load detection
- Thermal shutdown, UVLO, and overcurrent protection
- Bus voltage sensing
- Standby mode
- X-NUCLEO form factor with Arduino® connectors (not mounted by default)
- RoHS compliant
您可能还会喜欢...
质量与可靠性
| 产品型号 | Marketing Status | 包 | 等级规格 | 符合RoHS级别 | WEEE Compliant | Longevity Commitment | Longevity Starting Date | 材料声明** |
|---|---|---|---|---|---|---|---|---|
| EVLSPIN9P1-3PH | 批量生产 | CARD | 工业 | Ecopack1 | - | - | - | |
EVLSPIN9P1-3PH
Package:
CARDMaterial Declaration**:
(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此，它们可能不是100%适用于特定的设备。有关特定设备的信息，请联系 销售支持。
样片和购买
| 产品型号 | 供货状态 | Budgetary Price (US$)*/Qty | 从ST订购 | Order from distributors | 包 | 包装类型 | RoHS | Country of Origin | ECCN (US) | ECCN (EU) | 供应商 | 核心产品 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EVLSPIN9P1-3PH | | | distributors 无法联系到经销商，请联系我们的销售办事处 |
|
|
EVLSPIN9P1-3PH 批量生产
