EVLPOWERSTEP01

批量生产
Design Win

系统级封装集成了微步控制器和10 A功率MOSFET的评估板

下载数据摘要 Order Direct

产品概述

描述

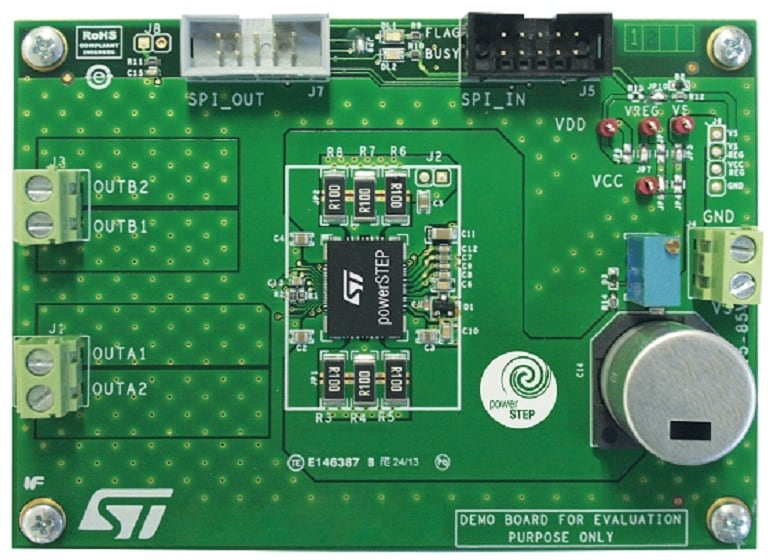

The EVLPOWERSTEP01 demonstration board is a microstepping motor driver delivering up to 10 Ar.m.s.. In combination with the STEVAL-PCC009V2 communication board and the evaluation software, the board allows the user to investigate all the features of the powerSTEP01. In particular, the board can be used to check the performance and to regulate the parameters in order to fit the application requirements.

The EVLPOWERSTEP01 supports the daisy chain configuration making it suitable for the evaluation of the powerSTEP01 in multi motor applications.

  • 所有功能

    • Voltage range from 10.5 V to 85 V
    • 10 Ar.m.s.maximum output current
    • Up to 1/128 microstep
    • Programmable speed profile and advanced commands
    • Adjustable output slew rate
    • SPI with daisy chain feature
    • FLAG and BUSY LED indicators
    • Flexible supply voltage management
    • Suitable to be used in combination with STEVAL-PCC009V2

您可能还会喜欢...

质量与可靠性

产品型号 Marketing Status 等级规格 符合RoHS级别 WEEE Compliant 材料声明**
EVLPOWERSTEP01
批量生产
CARD 工业 Ecopack1 -

EVLPOWERSTEP01

Package:

CARD

Material Declaration**:

Marketing Status

批量生产

Package

CARD

Grade

Industrial

RoHS Compliance Grade

Ecopack1

(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此,它们可能不是100%适用于特定的设备。有关特定设备的信息,请联系 销售支持

样片和购买

Swipe or click the button to explore more details Don't show this again
产品型号
供货状态
Budgetary Price (US$)*/Qty
从ST订购
Order from distributors
包装类型
RoHS
Country of Origin
ECCN (US)
ECCN (EU)
供应商
核心产品
EVLPOWERSTEP01
Available at distributors

经销商的可用性 EVLPOWERSTEP01

代理商名称
地区 库存 最小订购量 第三方链接

代理商库存报告日期:

无法联系到经销商,请联系我们的销售办事处

EVLPOWERSTEP01 批量生产

Budgetary Price (US$)*/Qty:
-
包:
包装类型:
RoHS:
Country of Origin:
ECCN (US):
ECCN (EU):

产品型号:

EVLPOWERSTEP01

供应商:

ST

核心产品:

POWERSTEP01

代理商名称

代理商库存报告日期:

Swipe or click the button to explore more details Don't show this again

(*) 建议转售单价(美元)仅用于预算用途。如需以当地货币计价的报价,请联系您当地的 ST销售办事处 或我们的 经销商
