产品概述
描述

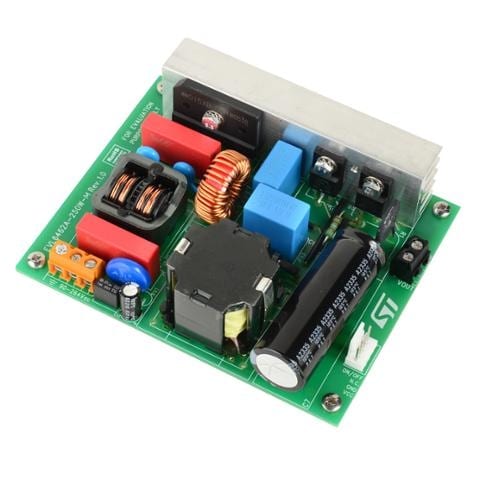

The EVL6462A-250W-M demonstration board, based on the new L6462A transition mode power factor controller, implements a 250 W wide-range input PFC pre-regulator.
Thanks to the L6462A small package (SOT23-6L) and to its embedded IPs, this design offers a minimal component count, a simple and easy design, high efficiency, and very low input current distortion (THD) under all operating conditions.
-
所有功能
- Universal input voltage range: 90 to 264 Vac with 47 Hz to63 Hz frequency
- Regulated output voltage: 400 Vdc
- Maximum output power: 250 W
- Total Harmonic Distortion (THD): < 5% at full load and < 15% down to 20% load
- Peak efficiency: 97.4%
- Mains harmonics: meets EN61000-3-2 Class-D and JEITA-MITI Class-D
- EMI: according to EN55022 Class-B
质量与可靠性
| 产品型号 | Marketing Status | 包 | 等级规格 | 符合RoHS级别 | WEEE Compliant | Longevity Commitment | Longevity Starting Date | 材料声明** |
|---|---|---|---|---|---|---|---|---|
| EVL6462A-250W-M | 预览 | CARD | 工业 | Ecopack1 | - | - | - | |
EVL6462A-250W-M
Package:
CARDMaterial Declaration**:
(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此，它们可能不是100%适用于特定的设备。有关特定设备的信息，请联系 销售支持。
样片和购买
Don't show this again
| 产品型号 | 供货状态 | Budgetary Price (US$)*/Qty | 从ST订购 | Order from distributors | 包 | 包装类型 | RoHS | Country of Origin | ECCN (US) | ECCN (EU) | 供应商 | 核心产品 | Board production status | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EVL6462A-250W-M | | | distributors 无法联系到经销商，请联系我们的销售办事处 |
|
|
|
Budgetary Price (US$)*/Qty:
-
distributors
无法联系到经销商，请联系我们的销售办事处
包:
包装类型:
RoHS:
Country of Origin:
ECCN (US):
ECCN (EU):
