产品概要
描述

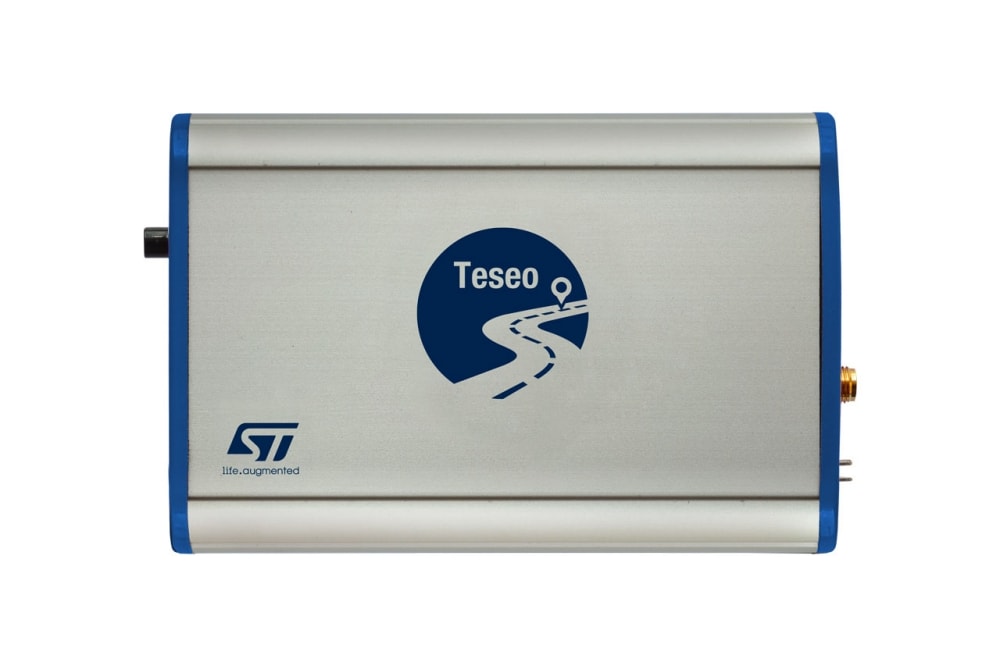

The EVB-T5DR board is a complete standalone evaluation platform for Teseo-V STA8100GA GNSS MultiBand and Multiconstellation receiver dead reckoning IC solution.
The EVB-T5DR is designed for the best STA8100GA performance. Boot and reset buttons allow an easy programming procedure.
The 14-pin connector allows access to the ODO/CAN signals to simplify car-connection.
Teseo-V embeds the high performance ARMTM Cortex-M7 microprocessor with RF front-end able to support different bands (L1 and L5), UART communication interfaces.
Performance and configuration can be analysed using the STMicroelectronics Teseo Suite PC Tool available on www.st.com.
-
性能一览
- ST Teseo-V STA8100GA dead reckoning GNSS platform
- Multiconstellation and MultiBand GNSS receiver; GPS, Galileo Glonass, BeiDou, QZSS supported
- USB power supply
- Button:
- ON/OFF button
- Reset button
- Boot button
- NMEA over UART by USB
- PPS output
- Leds:
- PPS
- Power
- Antenna
- ODO/CAN connector
- STMicroelectronics ASM330LHH MEMS
所有资源
| Resource title | 版本 | Latest update | Actions | Details | 下載 |
|---|
Board Manufacturing Specifications (2)
| Resource title | 版本 | Latest update | Actions | Options | ||
|---|---|---|---|---|---|---|
| ZIP | 1.0 | 31 Jan 2022 | 31 Jan 2022 | |||
| ZIP | 1.0 | 31 Jan 2022 | 31 Jan 2022 |
BOM (2)
| Resource title | 版本 | Latest update | Actions | Options | ||
|---|---|---|---|---|---|---|
| XLSX | 1.0 | 31 Jan 2022 | 31 Jan 2022 | |||
| XLS | 1.0 | 31 Jan 2022 | 31 Jan 2022 |
Schematic Pack (2)
| Resource title | 版本 | Latest update | Actions | Options | ||
|---|---|---|---|---|---|---|
| 1.0 | 31 Jan 2022 | 31 Jan 2022 | ||||
| 1.0 | 31 Jan 2022 | 31 Jan 2022 |
Quality and Reliability
| Part Number | Marketing Status | 符合RoHS级别 | WEEE Compliant | Longevity Commitment | Longevity Starting Date | Material Declaration** |
|---|---|---|---|---|---|---|
| EVB-T5DR | Active 产品已量产 | Not compliant | - | - | - | |
