产品概要
描述

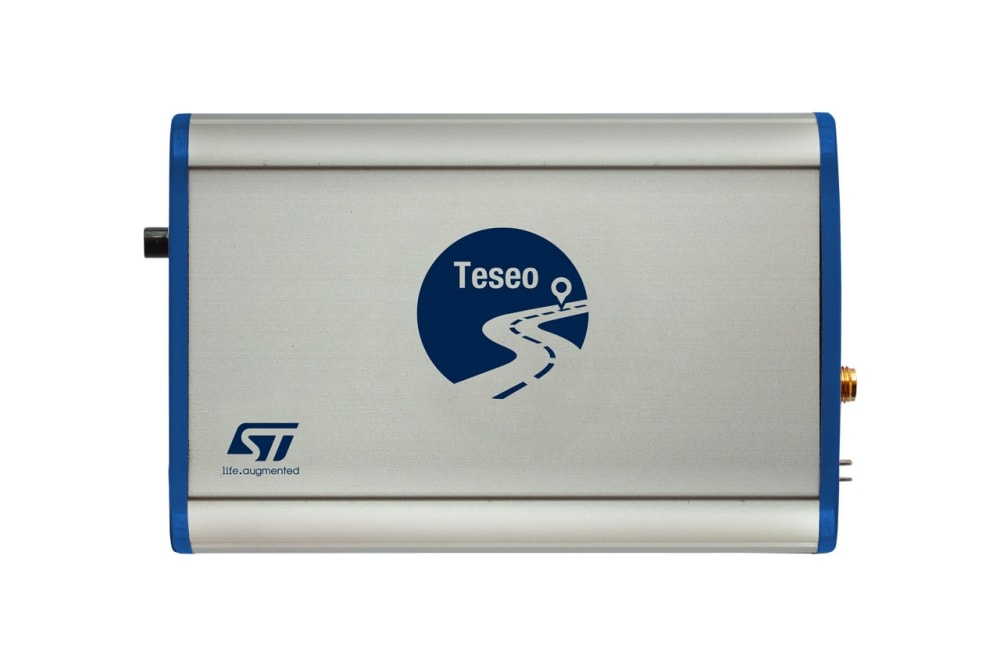

EVB-LIV4F is a complete standalone evaluation platform for Teseo-LIV4F dual-bands L1/L5 GNSS module ST solution. Teseo-LIV4F embeds the high performance ARM microprocessor with embedded flash, UART and I2C serial communication interfaces.
Performance and configuration can be analysed using the ST Teseo Suite PC tool available on www.st.com.
-
性能一览
- ST Teseo-LIV4F dual-bands L1/L5 GNSS platform
- Multiconstellation and multi-bands GNSS: GPS, Galileo Glonass, BeiDou, QZSS supported
- USB power supply and battery charge
- ON/OFF and reset buttons available
- NMEA over
- UART by USB
- Signals by connector
- PPS output
- Leds
- PPS
- Power
所有资源
| Resource title | 版本 | Latest update | Actions | Details | 下載 |
|---|
Board Manufacturing Specifications (1)
| Resource title | 版本 | Latest update | Actions | Options | ||
|---|---|---|---|---|---|---|
| ZIP | 1.0 | 25 Mar 2022 | 25 Mar 2022 |
BOM (1)
| Resource title | 版本 | Latest update | Actions | Options | ||
|---|---|---|---|---|---|---|
| 1.0 | 25 Mar 2022 | 25 Mar 2022 |
Schematic Pack (1)
| Resource title | 版本 | Latest update | Actions | Options | ||
|---|---|---|---|---|---|---|
| 1.0 | 25 Mar 2022 | 25 Mar 2022 |
Quality and Reliability
| Part Number | Marketing Status | 符合RoHS级别 | WEEE Compliant | Longevity Commitment | Longevity Starting Date | Material Declaration** |
|---|---|---|---|---|---|---|
| EVB-LIV4F | Active 产品已量产 | Not compliant | - | - | - | |
EVB-LIV4F
Package:
Not compliantMaterial Declaration**:
(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此，它们可能不是100%适用于特定的设备。有关特定设备的信息，请联系 销售支持。
