采用L6482H的高功率微步进电机驱动器

下载数据摘要 Order Direct

产品概述

描述

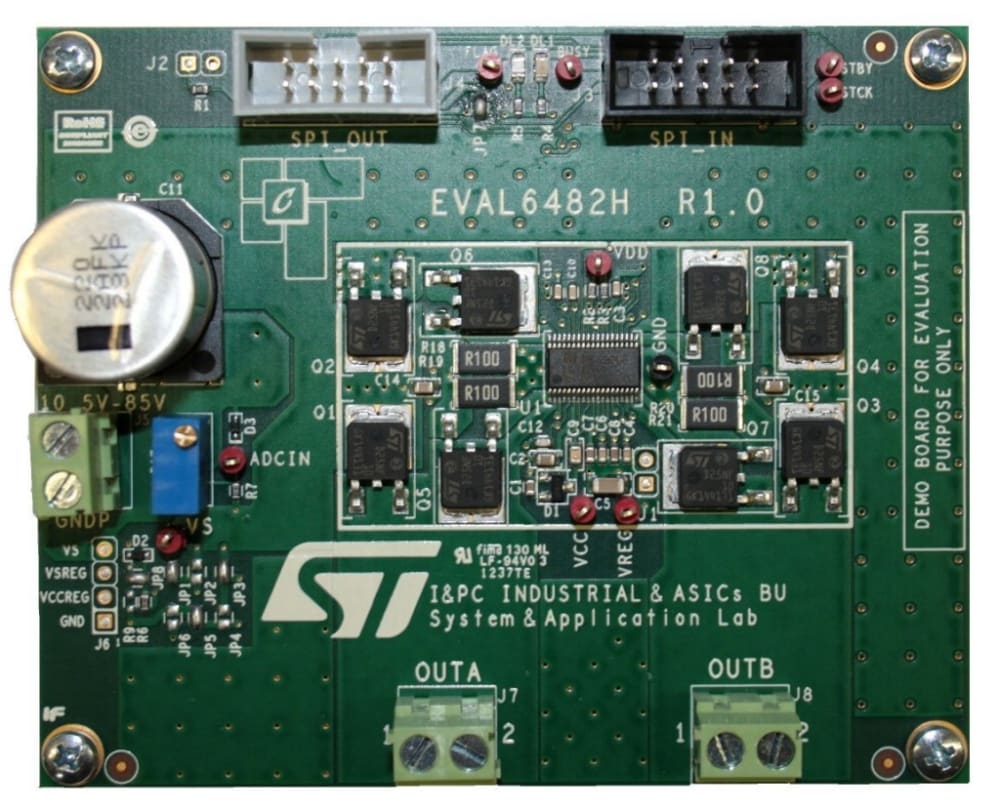

The EVAL6482H demonstration board is a high power microstepping motor driver. In combination with the STEVAL-PCC009V2 communication board and the evaluation software, the board allows the user to investigate all the features of the L6482 device. In particular, the board can be used to check the advanced current control and to regulate the L6482 parameters in order to fit the application requirements.

The EVAL6482H supports the daisy chain configuration making it suitable for the evaluation of the L6482 in multi motor applications.

  • 所有功能

    • Voltage range from 10.5 V to 85 V
    • Low Rds(ON)MOSFETs in DPAK package
    • SPI with daisy chain feature
    • FLAG and BUSY LED indicators
    • Flexible supply voltage management
    • Suitable for use in combination with the STEVAL-PCC009V2

您可能还会喜欢...

质量与可靠性

产品型号 Marketing Status 等级规格 符合RoHS级别 WEEE Compliant 材料声明**
EVAL6482H
批量生产
CARD 工业 Ecopack1 -

EVAL6482H

Package:

CARD

Material Declaration**:

Marketing Status

批量生产

Package

CARD

Grade

Industrial

RoHS Compliance Grade

Ecopack1

(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此,它们可能不是100%适用于特定的设备。有关特定设备的信息,请联系 销售支持
