L6480探索套件:用于探索L6480电机控制器的开发工具

下载数据摘要

产品概述

描述

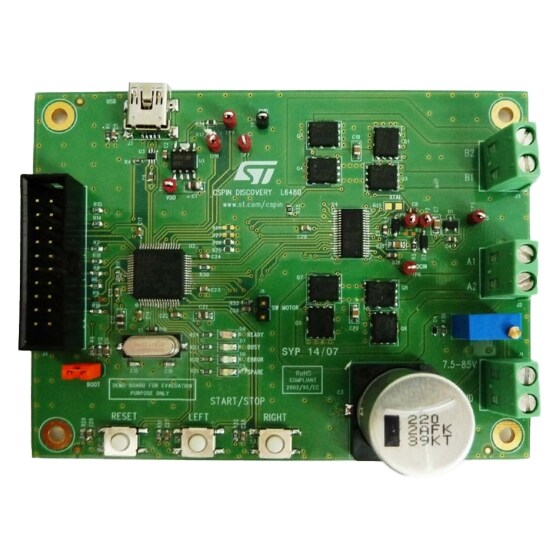

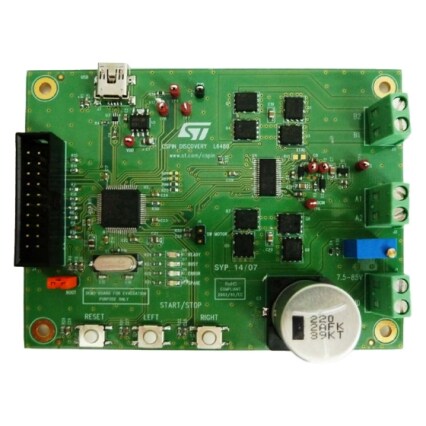

The L6480 Discovery is a low cost development tool to explore the L6480 motor controller.

The EVAL6480H-DISC is an ideal starter kit for both beginners and experienced users, it is autonomous and can be used with a software interface, or it can be used with custom firmware thanks to the embedded microcontroller.

Through the available GUI a user can easily set the full configuration of application parameters. The “Plug and Play” tool offers high motor control flexibility thanks to the wide operating voltage range from 10.5 V to 85 V and the current capability up to 7.8 Ar.m.s. It is equipped with LED indicators for a specific ready, busy, and error warning.

  • 所有功能

    • Voltage range from 10.5 V to 85 V
    • Phase current up to 7.8 A r.m.s
    • Footprint for external resonator or crystal
    • Switch motor input control
    • Keys start/left - stop/right - reset
    • Ready, busy, error LED indicators
    • Spare LED indicators for specific design
    • Sensorless stall detection
    • Compatible with SPIN family evaluation tool
    • Autonomous board due to an embedded firmware
    • Up to 1/128 microstepping
    • Programmable non dissipative overcurrent
    • Overtemperature protection
