产品概要
描述

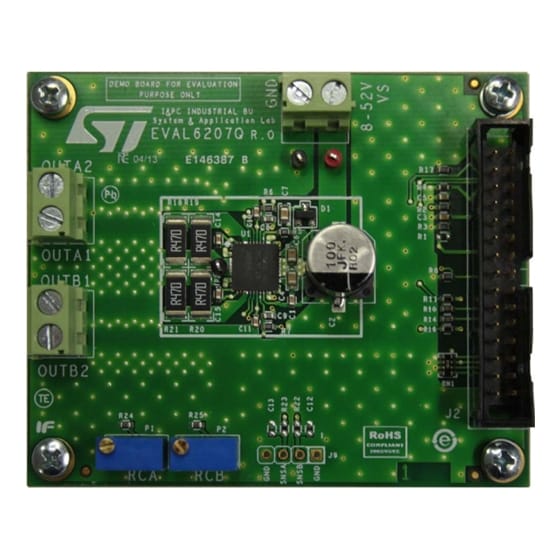

The EVAL6207Q is a dual full bridge driver board allowing the user to test the L6207Q functions.
The dual full bridges integrated into the L6207Q can be used to drive a single two phase stepper motor or up to four DC motors (unidirectional). The device also includes two independent constant OFF time PWM current controllers.
The board can be driven using the STEVAL-PCC009V2 communication board and the PractiSPINTM2 evaluation software.
-
性能一览
- Voltage range from 8 V to 52 V
- Phase current up to 2.5 Ar.m.s.
- Adjustable constant tOFFPWM current control
- Logic inputs 5 V / 3.3 V compliant
- Small application footprint with high thermal performance
- Suitable to be used in combination with PractiSPINTM2 software
特别推荐
Quality and Reliability
| Part Number | Marketing Status | Package | Grade | 符合RoHS级别 | WEEE Compliant | Longevity Commitment | Longevity Starting Date | Material Declaration** |
|---|---|---|---|---|---|---|---|---|
| EVAL6207Q | Active 产品已量产 | CARD | Industrial | Ecopack1 | - | - | - | |
EVAL6207Q
Package:
CARDMaterial Declaration**:
