产品概述
描述

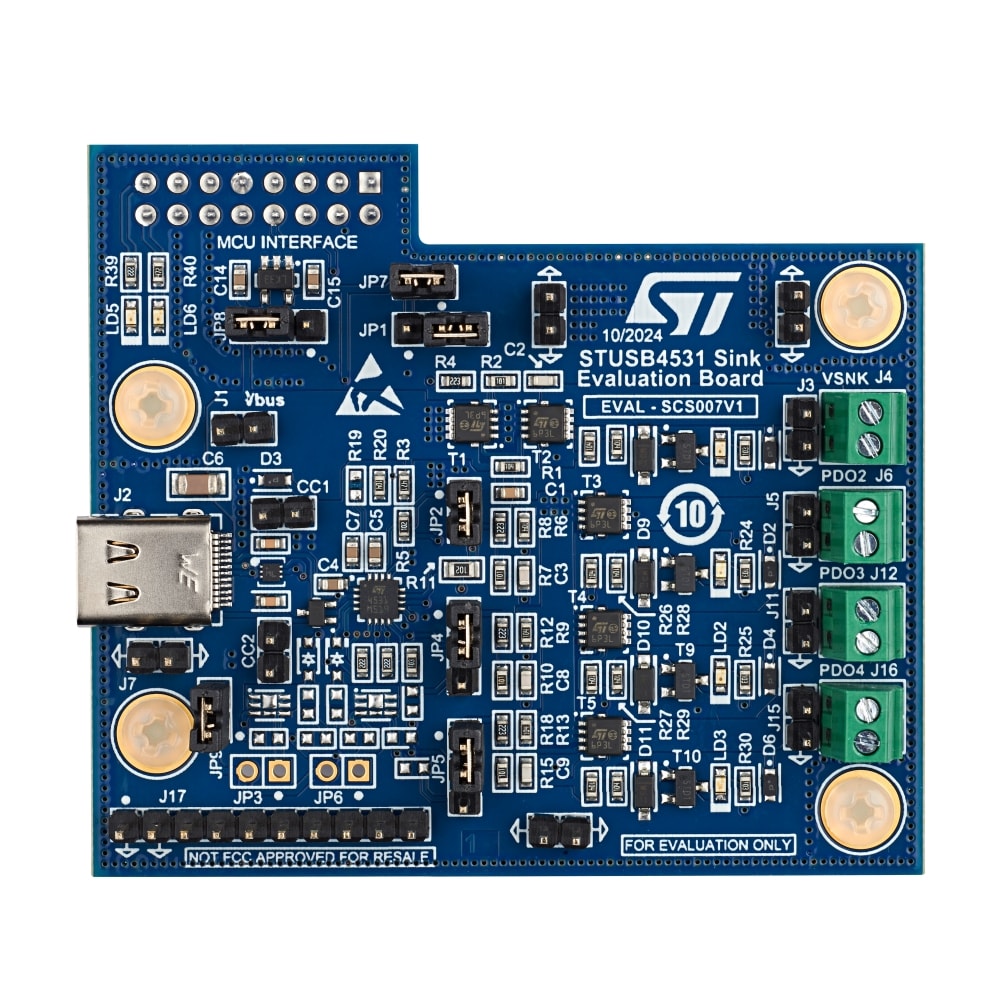

The EVAL-SCS007V1 evaluation board is a ready-to-use USB PD sink based on the STUSB4531. It handles the USB PD negotiation with a source to enable one or more charging paths. Several LEDs report power availability on each of the 4 available outputs.
The USB PD sink port is preconfigured with three FIXED PDOs (5 V, 9 V, 15 V) and one VARIABLE PDO (9 V to 20 V) to address a broad range of applications (PDP = 30 W). PDOs can be easily customized with the associated graphical user interface (GUI).
-
所有功能
- USB Power Delivery SINK port (up to 100 W)
- STUSB4531 USB PD controller, certified for:
- USB Type-C® (rev 2.4)
- USB PD (rev 3.2)
- TID: 13956
- Dead battery support
- Customizable startup profiles
- Multiple output paths
- Compliant with USB2.0
- Low BOM cost, small footprint
- Status LED
质量与可靠性
| 产品型号 | Marketing Status | 包 | 等级规格 | 符合RoHS级别 | WEEE Compliant | Longevity Commitment | Longevity Starting Date | 材料声明** |
|---|---|---|---|---|---|---|---|---|
| EVAL-SCS007V1 | 评估 | CARD | 工业 | Ecopack1 | Yes | - | - | |
EVAL-SCS007V1
Package:
CARDMaterial Declaration**:
(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此，它们可能不是100%适用于特定的设备。有关特定设备的信息，请联系 销售支持。
