产品概要
描述

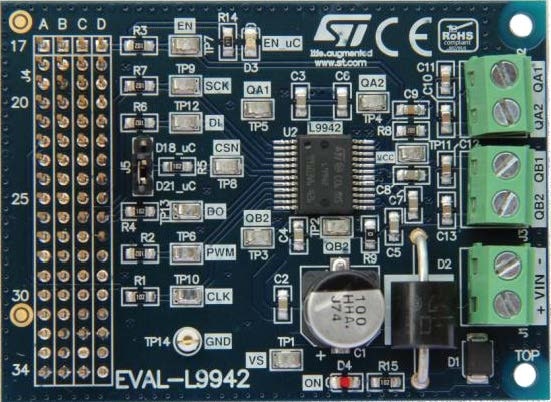

The EVAL-L9942 is the Evaluation Board designed to provide the user a platform to evaluate the device L9942.
The L9942 is a motor driver for bipolar stepper motors with micro-stepping and programmable current profile look-up-table to allow a flexible adaptation of the motor characteristics and intended operating conditions.
Different current profiles can be chosen depending on target criteria: audible noise, vibrations, rotation speed or torque.
The decay mode used in PWM-current control circuit can be programmed to have slow, fast, mixed and auto-decay.
The programmable stall detection is useful to avoid running the motor too long time in stall position minimizing the noise.
The EVAL-L9942 board provides all the inputs and outputs capabilities necessary to drive correctly a bipolar stepper motor and also to monitoring diagnostic functionalities.
The board can be connected to the discovery boards developed for the SPC56 microcontroller.
-
性能一览
- Input signal connector compatible with the SPC56 Discovery boards. Possibility to connect the board to further microcontroller discovery or control boards by a simple adaptor.
- Two output terminal blocks.
- Wide supply voltage range (VBatt): 7 V ÷ 20 V.
- 2 LEDs for monitoring VBattand EN signal.
- Device controlled and programmed via SPI.
- L9942 diagnostic functions via SPI.
- Test points to monitoring both input signals (SPI, PWM, EN, StepClock) and the four outputs (out power stage).
- No heat-sink is required
所有资源
| Resource title | 版本 | Latest update | Actions | Details | 下載 |
|---|
Board Manufacturing Specifications (1)
| Resource title | 版本 | Latest update | Actions | Options | ||
|---|---|---|---|---|---|---|
| 01 Aug 2015 | 01 Aug 2015 |
BOM (1)
| Resource title | 版本 | Latest update | Actions | Options | ||
|---|---|---|---|---|---|---|
| 1.0 | 01 Aug 2015 | 01 Aug 2015 |
Schematic Pack (1)
| Resource title | 版本 | Latest update | Actions | Options | ||
|---|---|---|---|---|---|---|
| 3.0 | 01 Aug 2015 | 01 Aug 2015 |
Quality and Reliability
| Part Number | Marketing Status | 符合RoHS级别 | WEEE Compliant | Longevity Commitment | Longevity Starting Date | Material Declaration** |
|---|---|---|---|---|---|---|
| EVAL-L9942 | Active 产品已量产 | Not compliant | - | - | - | |
