EV-VNF1048F

批量生产
Design Win

VNF1048F Evaluation Board

下载数据摘要

产品概述

描述

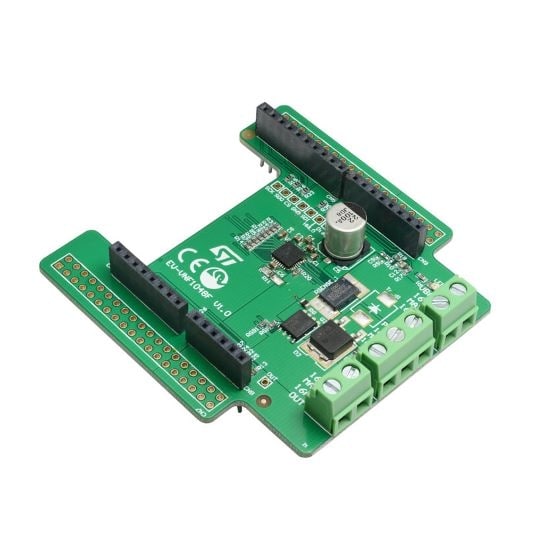

The EV-VNF1048F board provides an easy way to connect VNF1048F into the existing system.

  • 所有功能

    • EV-VNF1048F easy board that is able to work connected to EV-SPC582B to create an intelligent high side switch for 12 V, 24 V and 48 V automotive applications
    • General
      • High-side switch Control IC with e-fuse protection for Automotive 12 V, 24 V and 48 V applications
      • SPI slave interface for host control
      • 32-bit ST-SPI interface compatible with 3.3 V and 5 V CMOS level
      • 2 stage charge pump
      • Gate drive for an external MOSFET in high side configuration
      • High precision uni-directional digital current sense via SPI through an external high side shunt resistor
      • Input for a NTC resistor to monitor the external MOSFET temperature
      • Very low standby current
      • Robust fail-safe functionality through internal and external controls
      • SPI register lock-out by a dedicated digital input pin
      • Integrated ADC for TJ, VNTC, VOUT and VDS conversion
    • Protections
      • Battery under-voltage shut-down
      • External MOSFET desaturation shutdown configurable via SPI
      • Hard short circuit latch-off configurable via SPI
      • Current vs time latch-off configurable via SPI (fuse-emulation)
      • Device overtemperature shutdown
      • External MOSFET overtemperature shutdown
    • Intelligent high current fuse replacement for automotive applications
    • Especially intended for automotive power distribution applications
