产品概述
描述

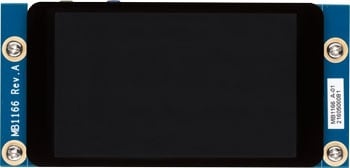

LCD daughterboard (B-LCD40-DSI1) provides a 4-inch WVGA TFT color LCD with a MIPI®DSI interface.
This LCD daughterboard is an optional display board that can be used with a discovery board such as the STM32F769I-DISC1. The evaluation boards STM32F769I-EVAL, STM32F779I-EVAL, STM32469I-EVAL, STM32479I-EVAL as well as the discovery board STM32F769I-DISCO are delivered with this LCD daughterboard already connected.
-
所有功能
- 4-inch TFT color LCD
- 480 (RGB)*800 pixels
- 16.7M display colors
- RGB vertical stripe of pixel arrangement
- Up to two lanes of MIPI®DSI data
- Self-capacitive touch panel supporting single-point touch and gesture or two-point touch
- 2.8V-3.3V power supply for both LCD and touch panel, 5V power supply for backlight
您可能还会喜欢...
精选 视频
Learn more about the STM32F7 series exiting features and high-performance form with the STM32F769I-DISCO discovery kit.
所有资源
| 资源标题 | 版本 | 更新时间 |
|---|
MCSDK Board Description (1)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| ZIP | 1.0 | 13 Sep 2016 | 13 Sep 2016 |
物料清单 (1)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| ZIP | 1.0 | 16 Sep 2016 | 16 Sep 2016 |
Schematic Pack (1)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| ZIP | 1.0 | 13 Sep 2016 | 13 Sep 2016 |
质量与可靠性
| 产品型号 | Marketing Status | 符合RoHS级别 | Longevity Commitment | Longevity Starting Date | 材料声明** |
|---|---|---|---|---|---|
| B-LCD40-DSI1 | NRND | Ecopack1 | - | - | |
B-LCD40-DSI1
Package:
Ecopack1Material Declaration**:
(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此，它们可能不是100%适用于特定的设备。有关特定设备的信息，请联系 销售支持。
