产品概述
描述

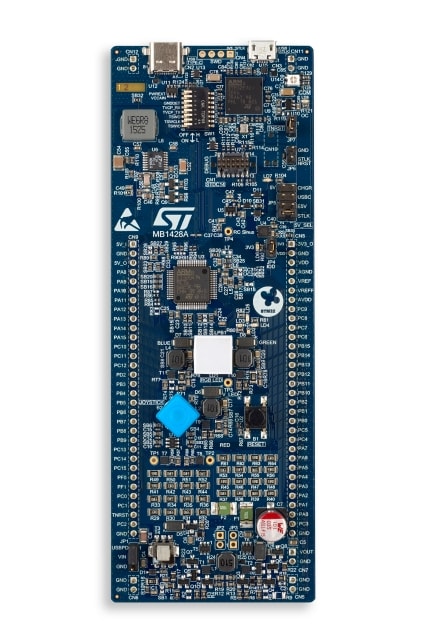

The B-G474E-DPOW1 Discovery kit is a digital power solution and a complete demonstration and development platform for the STMicroelectronics STM32G474RET6 microcontroller. Leveraging the new HRTimer-oriented features, 96 Kbytes of embedded RAM, math accelerator functions and USB-PD 3.0 offered by STM32G474RET6, the B-G474E-DPOW1 Discovery kit, based on the USB 2.0 FS Type-C™ connector interface, helps the user to prototype applications with digital power such as a buck-boost converter, RGB power LED lighting or a class-D audio amplifier. The B-G474E-DPOW1 Discovery kit does not require any separate probe, as it integrates the STLINK-V3E debugger and programmer. The B-G474E-DPOW1 Discovery kit comes with the comprehensive software HAL library together with various packaged software examples.
-
所有功能
- STM32G474RET6 Arm® Cortex®-M4 core-based microcontroller, featuring 512 Kbytes of Flash memory and 128 Kbytes of SRAM, in LQFP64 package
- USB Type-C™ with USB 2.0 FS interface compatible with USB-PD 3.0
- RGB power LED for a bright lighting
- Digital power buck-boost converter with internal or external Input voltage and with onboard resistor loads
- Audio Class-D amplifier capable
- 4 user LEDs
- 3 LEDs for power and ST-LINK communication
- 4-direction joystick with a selection button
- Reset push-button
- Board connectors:
- USB Type-C™
- USB Micro-B
- 2 x 32-pin header, 2.54 mm pitch, daughterboard extension connector for breadboard connection
- Flexible power-supply options: ST-LINK USB VBUS or USB Type-C™ VBUS or external source
- On-board STLINK-V3E debugger/programmer with USB re-enumeration capability: mass storage, Virtual COM port, and debug port
- Comprehensive free software libraries and examples available with the STM32CubeG4 MCU Package
- Support of a wide choice of Integrated Development Environments (IDEs) including IAR™, Keil®, and STM32CubeIDE
- Handled by STM32CubeMonitor-UCPD (STM32CubeMonUCPD) software tool
您可能还会喜欢...
精选 视频
The STM32G4 Series combines a 32-bit Arm® Cortex®-M4 core (with FPU and DSP instructions) running at 170 MHz combined with 3 different hardware accelerators: ART Accelerator™, CCM-SRAM routine booster and mathematical accelerators.
所有资源
| 资源标题 | 版本 | 更新时间 |
|---|
Board Manufacturing Specifications (2)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| ZIP | 1.1 | 26 Aug 2019 | 26 Aug 2019 | |
| ZIP | 1.0 | 26 Aug 2019 | 26 Aug 2019 |
物料清单 (1)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| ZIP | 1.0 | 26 Aug 2019 | 26 Aug 2019 |
Schematic Pack (1)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| 1.0 | 26 Aug 2019 | 26 Aug 2019 |
质量与可靠性
| 产品型号 | Marketing Status | 符合RoHS级别 | 材料声明** |
|---|---|---|---|
| B-G474E-DPOW1 | 批量生产 | Ecopack1 | |
B-G474E-DPOW1
Package:
Ecopack1Material Declaration**:
(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此，它们可能不是100%适用于特定的设备。有关特定设备的信息，请联系 销售支持。
样片和购买
| 产品型号 | 供货状态 | Budgetary Price (US$)*/Qty | 从ST订购 | Order from distributors | 包 | 包装类型 | RoHS | Country of Origin | ECCN (US) | ECCN (EU) | 供应商 | Specific features | WEEE Compliant | 核心产品 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B-G474E-DPOW1 | | | distributors 无法联系到经销商，请联系我们的销售办事处 |
|
|
|
|
B-G474E-DPOW1 批量生产
