产品概述
描述

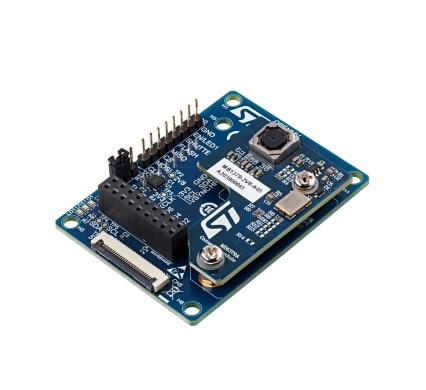

The camera module bundle (B-CAMS-OMV) provides extension connectors for the MB1379 STMicroelectronics camera module daughterboard or third-party modules like OpenMV and Waveshare modules. It can be used with the STM32 boards featuring a 1 × 30 pin ZIF connector for the connection of multiple cameras to implement computer vision on STM32 microcontrollers easily.
The camera module bundle is compatible with all STM32 Discovery kits and Evaluation boards featuring a ZIF connector, such as the STM32H747I-DISCO and 32L4R9IDISCOVERY Discovery kits.
-
All features
- Camera module adapter board (MB1683)
- 1 × 30 pin ZIF connector and extended GPIO connector for easy connection to compatible STM32 boards
- STMicroelectronics camera module (MB1379) connector
- OpenMV camera module connector
- Waveshare camera board connector
- 3.3 V power
- STMicroelectronics camera module (MB1379)
- Based on the OV5640 image sensor offering a 5-Mpixel resolution with 8-bit color
- Flexible flat cable (FFC)
- Camera module adapter board (MB1683)
所有资源
| Resource title | 版本 | Latest update | Actions | Details | 下載 |
|---|
Board Manufacturing Specifications (4)
| Resource title | 版本 | Latest update | Actions | Options | ||
|---|---|---|---|---|---|---|
| ZIP | 3.0 | 02 May 2024 | 02 May 2024 | |||
| ZIP | 3.1 | 02 May 2024 | 02 May 2024 | |||
| ZIP | 1.0 | 22 Dec 2020 | 22 Dec 2020 | |||
| ZIP | 1.0 | 22 Dec 2020 | 22 Dec 2020 |
BOM (2)
| Resource title | 版本 | Latest update | Actions | Options | ||
|---|---|---|---|---|---|---|
| ZIP | 3.0 | 02 May 2024 | 02 May 2024 | |||
| ZIP | 1.0 | 22 Dec 2020 | 22 Dec 2020 |
Schematic Pack (4)
| Resource title | 版本 | Latest update | Actions | Options | ||
|---|---|---|---|---|---|---|
| 1.0 | 02 May 2024 | 02 May 2024 | ||||
| 1.0 | 02 May 2024 | 02 May 2024 | ||||
| 3.0 | 22 Dec 2020 | 22 Dec 2020 | ||||
| 1.0 | 12 Jan 2021 | 12 Jan 2021 |
Quality and Reliability
| Part Number | Marketing Status | 符合RoHS级别 | Longevity Commitment | Longevity Starting Date | Material Declaration** |
|---|---|---|---|---|---|
| B-CAMS-OMV | Active 产品已量产 | Ecopack1 | - | - | |
B-CAMS-OMV
Package:
Ecopack1Material Declaration**:
(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此，它们可能不是100%适用于特定的设备。有关特定设备的信息，请联系 销售支持。
You’re now leaving st.com and will be re-directed to our Partner’s website.
For the latest innovations and solutions from ST, sign up for our newsletters.
Sample & Buy
| Part Number | 供货状态 | Budgetary Price (US$)*/Qty | 从ST订购 | Order from distributors | Package | Packing Type | RoHS | Country of Origin | ECCN (US) | ECCN (EU) | Supplier | Specific features | WEEE Compliant | Core Product | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B-CAMS-OMV | | | distributors 无法联系到经销商，请联系我们的销售办事处 |
|
|
|
|
B-CAMS-OMV Active
