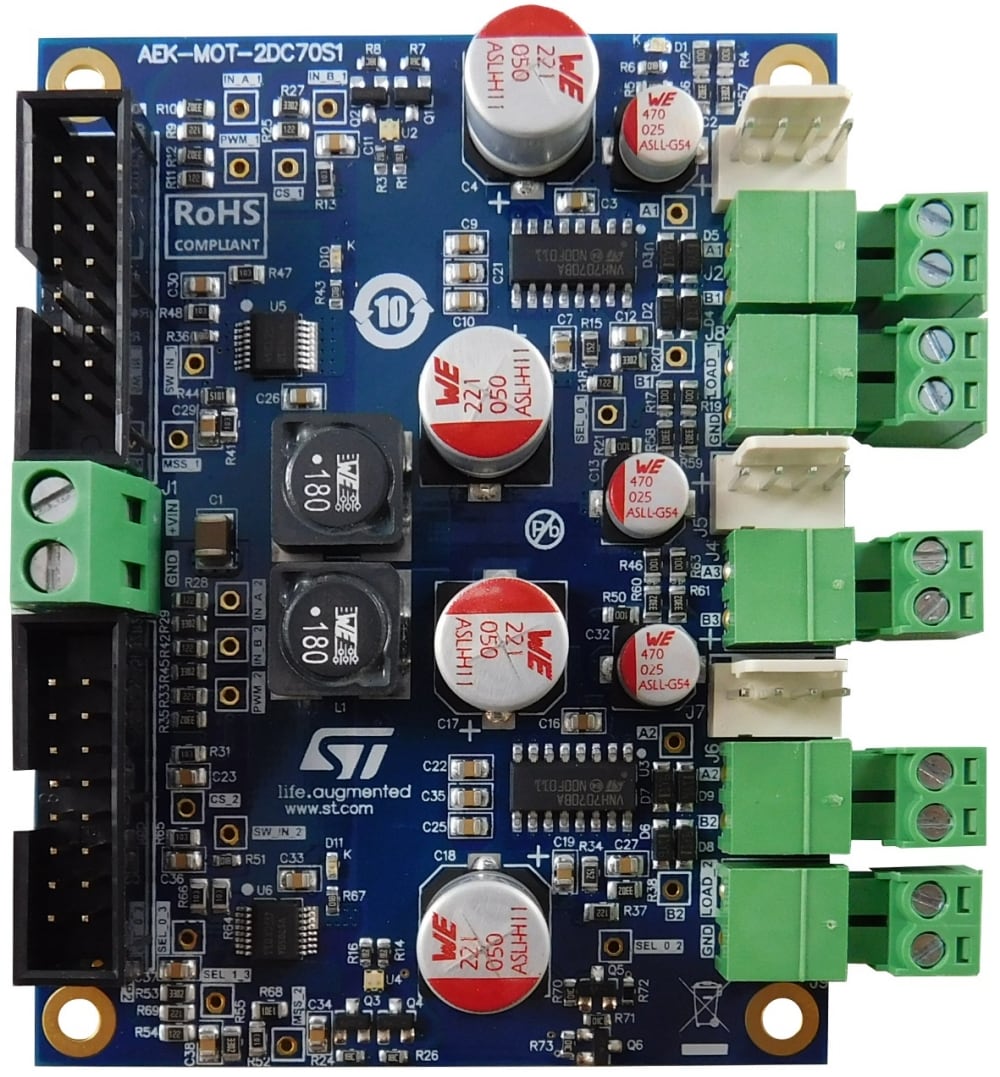

The AEK-MOT-2DC70S1 is a very compact solution for multi DC motor driving applications, embedding all the driver and signal decoding functions on the same board.
Together with current sensing capability, the AEK-MOT-2DC70S1 features three independent encoder inputs. The DC motor drivers have separate half-bridge driving which allows up to three separate motors with only two devices, using an appropriate driving sequence.
The motor driver is ideal for two-wheel applications and allows engineers to build highly compact motor control solutions. The two high-side drivers facilitate additional driving for system actuators (unidirectional DC motor, LED, pump, etc.).
-
所有功能
- Dual DC motor driver
- Parallel driving
- Bi-directional
- Output current up to 15A each device
- Three DC motor drivers
- Up to two in parallel
- Bi-directional
- Dual high-side driver
- Parallel driving
- Suitable for DC unidirectional driving
- One channel up to 85 A and the other up to 25 A
- Optional encoder input
- Three separated connectors
- Size 65 mm x 83 mm
- Included in AutoDevKit initiative
- RoHS compliant
