产品概述
描述

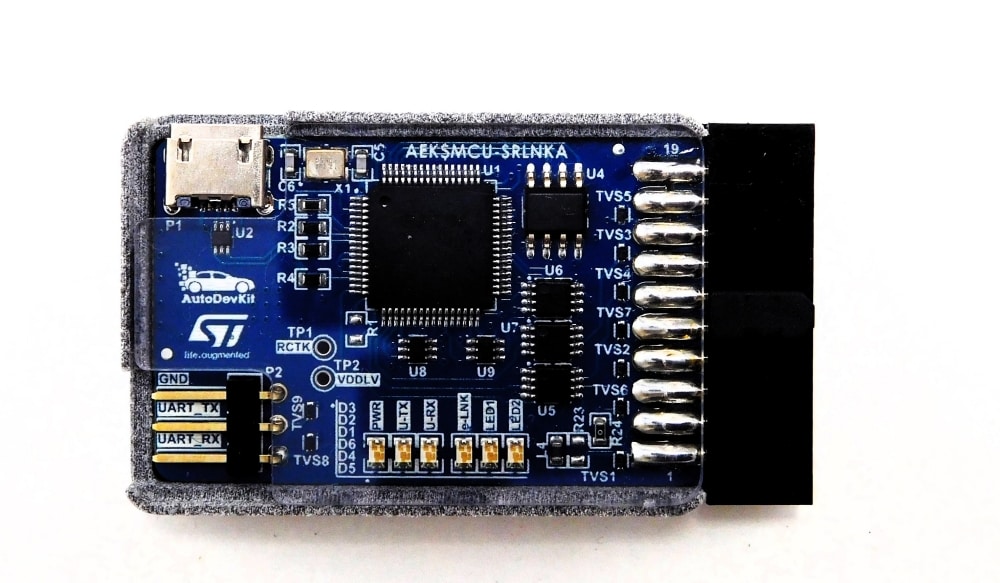

The AEK-MCU-SRLNK is a debugger/programmer dongle for Stellar automotive microcontrollers.
It consists of a passive USB-to-JTAG debugger and programmer, which provides a cost-effective, small-size, and fast-prototyping solution for any vehicle applications.
This dongle ensures short development time through easy-to-use hardware and simple software fully integrated into StellarStudio IDE.
The JTAG interface ensures an easy plug to any ST standalone automotive microcontroller and its evaluation boards (compliant with the IEEE 1149.1 JTAG protocol).
-
所有功能
- USB/JTAG debugger dongle for Stellar automotive MCU families
- USB connector for supply and data communication
- Application firmware directly downloaded into Stellar device FLASH or RAM memory
- Run and debug your application firmware
- Compliant with the IEEE 1149.1 JTAG protocol
- Integrates serial port connection via USB interface (virtualCOM)
- Provides NVM programming (erase/program/verify)
- Connectors:
- 20-pin header connector for JTAG interface
- 3-pin header connector for UART interface
- Status LEDs to indicate the target I/O voltage, connection state, and running state
- Operating temperature range: from 0 to 50°C
- Compatible with StellarStudio
