产品概要
描述

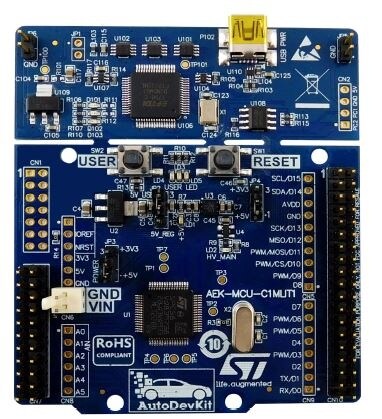

The AEK-MCU-C1MLIT1 board exploits the functionality of SPC582B60E1 Power Architecture® microcontrollers with full access to I/O signals and peripherals.
The SPC58 2B Line MCUs are designed to address automotive vehicle body, gateway and industrial applications.
Free ready-to-run application firmware examples are available in the SPC5-STUDIO software with AutoDevKit plug-in (STSW-AUTODEVKIT) to support quick evaluation and development.
-
性能一览
- SPC582B60E1 microcontroller: 32-bit z2 core at 80 Mhz CPU, 32-bit Power Architecture® technology CPU, 1 MB Code Flash in eQFP64 package
- On-board USB-JTAG PLS debugger and dedicated optional connector to plug a standalone JTAG debugger
- Extension headers for all the device pins for fast prototyping
- Mini-B USB port
- One user push button and one RESET button
- 3 LEDs for user purposes
- 3 integrated programmers/debuggers
- 1 Reset and 1 Power LED (+5 V)
- 40 MHz Crystal
- RoHS and WEEE compliant
- Part of the AutoDevKit™ initiative
特别推荐
所有资源
| Resource title | 版本 | Latest update | Actions | Details | 下載 |
|---|
Board Manufacturing Specifications (1)
| Resource title | 版本 | Latest update | Actions | Options | ||
|---|---|---|---|---|---|---|
| ZIP | 1.0 | 28 Feb 2020 | 28 Feb 2020 |
BOM (1)
| Resource title | 版本 | Latest update | Actions | Options | ||
|---|---|---|---|---|---|---|
| 1.0 | 28 Feb 2020 | 28 Feb 2020 |
Schematic Pack (1)
| Resource title | 版本 | Latest update | Actions | Options | ||
|---|---|---|---|---|---|---|
| 1.0 | 28 Feb 2020 | 28 Feb 2020 |
Quality and Reliability
| Part Number | Marketing Status | 符合RoHS级别 | WEEE Compliant | Longevity Commitment | Longevity Starting Date | Material Declaration** |
|---|---|---|---|---|---|---|
| AEK-MCU-C1MLIT1 | NRND 不推荐用于新设计。量产仅供支持现有生产。 | Ecopack2 | Yes | - | - | |
AEK-MCU-C1MLIT1
Package:
Ecopack2Material Declaration**:
(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此，它们可能不是100%适用于特定的设备。有关特定设备的信息，请联系 销售支持。
