产品概述
描述

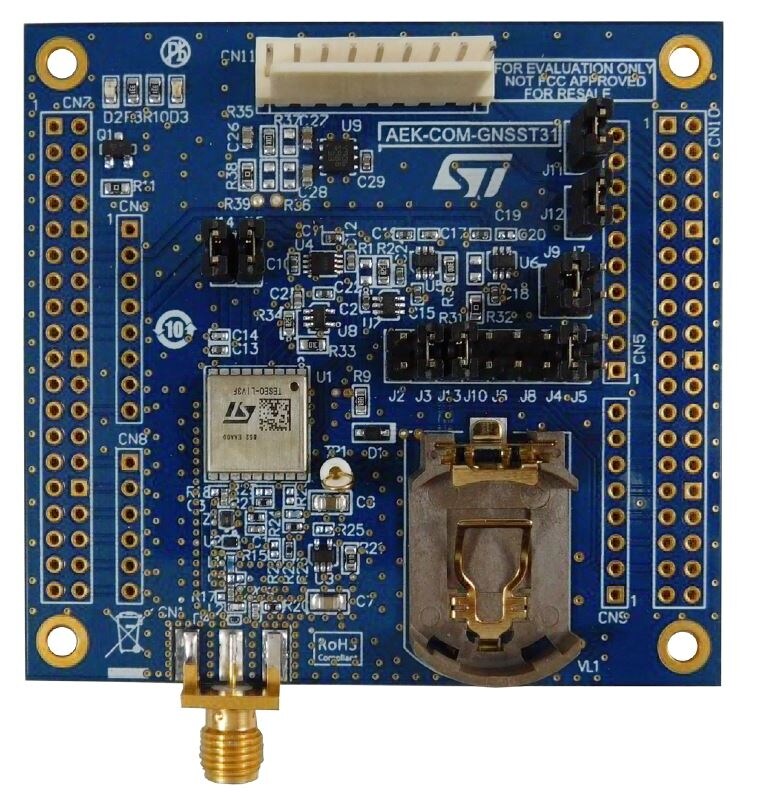

The AEK-COM-GNSST31 evaluation board is based on the certified Teseo-LIV3F global navigation satellite system (GNSS) module with embedded TeseoIII single die standalone positioning receiver IC.
The tiny, affordable, and easy-to use module guarantees superior accuracy and reduced time to first fix (TTFF) thanks to the on-board 26 MHz temperature compensated crystal oscillator (TCXO) and dedicated 32 KHz real-time clock (RTC) oscillator.
The evaluation package is used in conjunction with the X-CUBE-GNSS1 firmware to provide the necessary acquisition, tracking, navigation and data output functionality without external memory support.
The AEK-COM-GNSST31 evaluation board can be readily connected with an SPC5 MCU for automotive application development as part of the AutoDevKit™ initiative.
-
所有功能
- Sensitivity: -162 dBm indoor (tracking mode)
- Interfaces:
- UART and I²C ports
- Configurable digital I/O timepulse
- EXTINT input for wakeup
- NMEA protocol
- Assisted GNSS:
- Predictive autonomous
- Predictive server-based
- Real-time server-based
- Compatible with SPC5
- LNA and SAW filter on the RF path
- SMA female antenna connector
- Battery holder
- Highly compact design: 70 x 65 mm
- Operating supply voltage: 3.3 - 5 V
- Ambient temperature: -40/+85 °C
- Part of the AutoDevKit™ initiative
- RoHS and WEEE compliant
