AEK-COM-BLEV1

NRND
Design Win

Bluetooth communication board based on BlueNRG-1

下载数据摘要

产品概述

描述

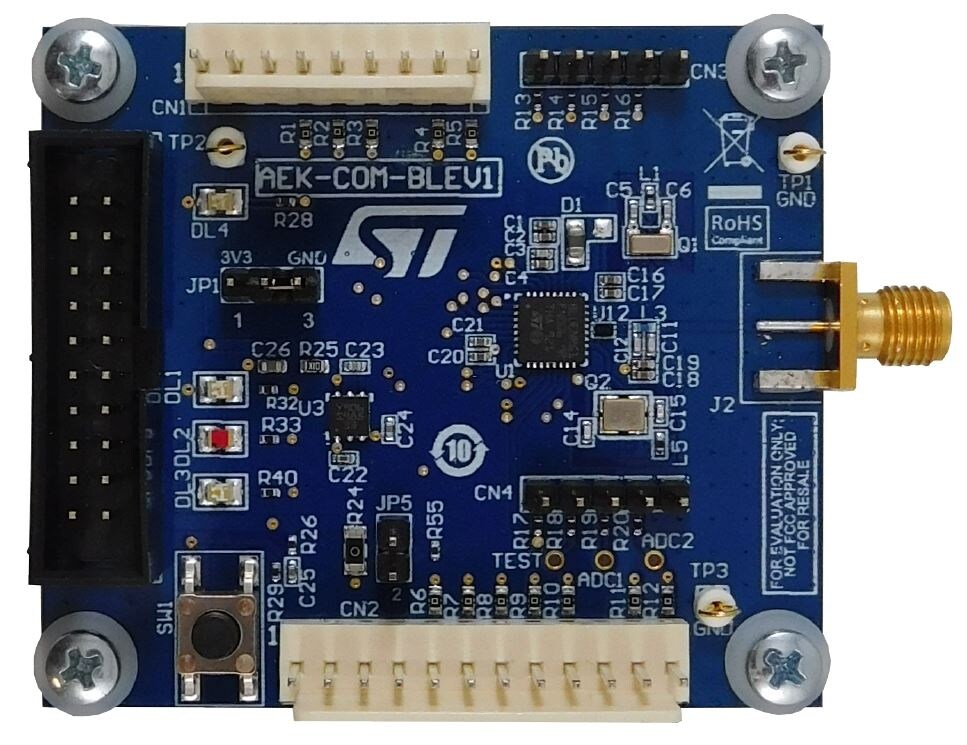

The AEK-COM-BLEV1 evaluation board is based on the BlueNRG-1 low power Bluetooth® smart system on chip, compliant with the Bluetooth® specification.

The evaluation board can be connected to a microcontroller via a 12-pin or alternative 9-pin male connector for SPI, serial interface or I²C communication.

The BlueNRG-1 device is supplied with the network processor software loaded and ready to process Bluetooth commands. The software image (DTM_UART.hex) is available in the BlueNRG design kit.

The STSW-AEKBLE firmware provides a straightforward demonstration of the AEK-COM-BLEV1 board functionality used in conjunction with the AEK-MCU-C4MLIT1 evaluation board with microcontroller.

  • 所有功能

    • Based on the BlueNRG-1 Bluetooth low energy system on chip
    • Associated STSW-BLUENRG-DK (BlueNRG-1 development kit software package) including firmware and documentation
    • Up to +8 dBm available output power (at antenna connector)
    • Excellent receiver sensitivity (-88 dBm)
    • Very low power consumption: 7.7 mA RX and 8.2 mA TX at +0 dBm
    • Bluetooth® low energy compliant: supports master, slave and simultaneous master-and-slave roles
    • New integrated balun BALF-NRG-02D3 which integrates a matching network and harmonics filter
    • 3 user LEDs
    • JTAG debug connector
    • Pre-programmed as network processor
    • Board size: 60 x 40 mm.
    • Part of the AutoDevKit™ initiative
    • RoHS and WEEE compliant

您可能还会喜欢...

质量与可靠性

产品型号 Marketing Status 等级规格 符合RoHS级别 WEEE Compliant 材料声明**
AEK-COM-BLEV1
NRND
CARD 工业 Ecopack2 Yes

AEK-COM-BLEV1

Package:

CARD

Material Declaration**:

Marketing Status

NRND

Package

CARD

Grade

Industrial

RoHS Compliance Grade

Ecopack2

(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此,它们可能不是100%适用于特定的设备。有关特定设备的信息,请联系 销售支持

样片和购买

Swipe or click the button to explore more details Don't show this again
产品型号
供货状态
Budgetary Price (US$)*/Qty
从ST订购
Order from distributors
包装类型
RoHS
Country of Origin
ECCN (US)
ECCN (EU)
供应商
核心产品
AEK-COM-BLEV1
Available at distributors

经销商的可用性 AEK-COM-BLEV1

代理商名称
地区 库存 最小订购量 第三方链接

代理商库存报告日期:

无法联系到经销商,请联系我们的销售办事处

AEK-COM-BLEV1 NRND

Budgetary Price (US$)*/Qty:
-
包:
包装类型:
RoHS:
Country of Origin:
ECCN (US):
ECCN (EU):

产品型号:

AEK-COM-BLEV1

供应商:

ST

核心产品:

BlueNRG-1, BALF-NRG-02D3

代理商名称

代理商库存报告日期:

Swipe or click the button to explore more details Don't show this again

(*) 建议转售单价(美元)仅用于预算用途。如需以当地货币计价的报价,请联系您当地的 ST销售办事处 或我们的 经销商
