产品概述
描述

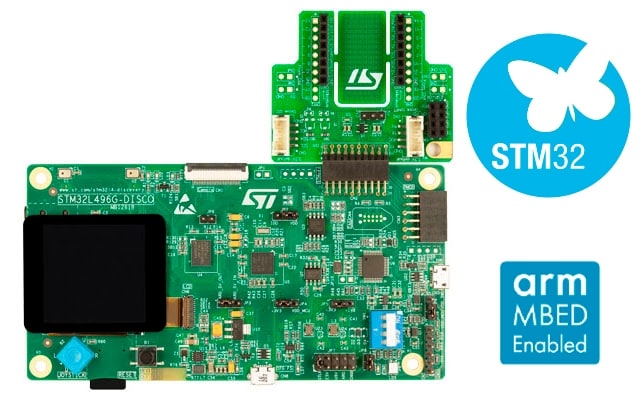

The 32L496GDISCOVERY Discovery kit is a complete demonstration and development platform for STMicroelectronics Arm® Cortex®‑M4 core-based STM32L496AG microcontroller. Thanks to the innovative ultra‑low‑power‑oriented features, extended RAM, and graphics performance (Chrom-ART Accelerator) offered by the STM32L496AG, the 32L496GDISCOVERY Discovery kit is designed to enable easy prototyping for many applications, including audio and graphics, with state-of-the-art energy efficiency. For even more user‑friendliness, the on-board ST-LINK/V2-1 debugger provides out-of-the-box loading and debugging capabilities.
-
所有功能
- STM32L496AGI6 Arm® Cortex®‑M4 core-based microcontroller featuring 1 Mbyte of flash memory and 320 Kbytes of RAM, in a UFBGA169 package
- 1.54‑inch 240 x 240‑pixel TFT color LCD with parallel interface
- SAI audio codec, with stereo output, including analog microphone input
- Stereo digital MEMS microphones
- 8‑Mbit PSRAM
- 64‑Mbit Quad-SPI flash
- Eight LEDs including three user‑controllable ones
- Reset push-button
- 4‑way joystick with selection
- Board connectors:
- 8‑bit camera
- Stereo headset jack
- microSD™ card holder with included card
- USB Micro-B
- USB Micro-AB
- STMod+ and Pmod™
- ARDUINO® Uno V3
- On-board ST-LINK/V2-1 debugger/programmer with USB re-enumeration capability: mass storage, Virtual COM port, and debug port
- Flexible power-supply options: ST-LINK USB VBUS, USB OTG FS connector, or external sources
- 1.8 and 3.3 V possible MCU supply voltages
- IDD measurement
- Comprehensive free software libraries and examples available with the STM32Cube MCU Package
- Support of a wide choice of Integrated Development Environments (IDEs) including IAR Embedded Workbench®, MDK-ARM, and STM32CubeIDE
