产品概要
描述
The 32L152CDISCOVERY Discovery kit helps the development of applications based on the STM32L1 Series microcontrollers and benefit from the ultra-low-power features of these devices.

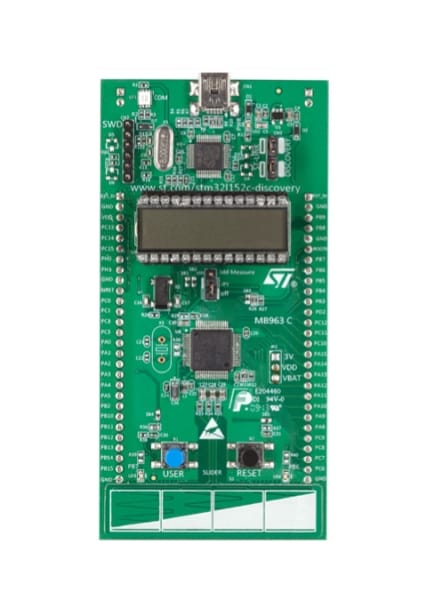

Based on the STM32L152RC microcontroller, this Discovery kit includes an ST-LINK/V2 embedded debugging tool interface, a 24‑segment 4‑common LCD, LEDs, push-buttons, a linear touch sensor, and touchkeys.
-
性能一览
- STM32L152RC Arm® Cortex®‑M3 core‑based microcontroller with 256 Kbytes of flash memory, 32 Kbytes of RAM, and 8 Kbytes of data EEPROM in an LQFP64 package
- 24‑segment 4‑common LCD in a DIP28 package
- Four LEDs:
- LD1 (red/green) for USB communication
- LD2 (red) for 3.3 V power-on
- Two user LEDs, LD3 (green) and LD4 (blue)
- User and reset push-buttons
- One linear touch sensor and four touchkeys
- Board connectors:
- Serial Wire Debug Port (SWD)
- Extension header for LQFP64 I/Os for quick connection to prototyping board and easy probing
- Flexible power-supply options: ST-LINK USB VBUS or external sources
- External application power supply: 3 V and 5 V
- IDD current measurement
- Comprehensive free software libraries and examples available with the STM32Cube MCU Package
- On-board ST-LINK/V2 debugger/programmer with USB re-enumeration capability: Virtual COM port, and debug port
- Support of a wide choice of Integrated Development Environments (IDEs) including IAR Embedded Workbench®, MDK-ARM, and STM32CubeIDE
所有资源
| Resource title | 版本 | Latest update | Actions | Details | 下載 |
|---|
Board Manufacturing Specifications (2)
| Resource title | 版本 | Latest update | Actions | Options | ||
|---|---|---|---|---|---|---|
| ZIP | 2.0 | 24 Oct 2022 | 24 Oct 2022 | |||
| ZIP | 2.0 | 24 Oct 2022 | 24 Oct 2022 |
BOM (1)
| Resource title | 版本 | Latest update | Actions | Options | ||
|---|---|---|---|---|---|---|
| ZIP | 2.0 | 24 Oct 2022 | 24 Oct 2022 |
Schematic Pack (1)
| Resource title | 版本 | Latest update | Actions | Options | ||
|---|---|---|---|---|---|---|
| 2.0 | 24 Oct 2022 | 24 Oct 2022 |
Quality and Reliability
| Part Number | Marketing Status | 符合RoHS级别 | Longevity Commitment | Longevity Starting Date | Material Declaration** |
|---|---|---|---|---|---|
| STM32L152C-DISCO | Active 产品已量产 | Ecopack1 | - | - | |
STM32L152C-DISCO
Package:
Ecopack1Material Declaration**:
(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此，它们可能不是100%适用于特定的设备。有关特定设备的信息，请联系 销售支持。
