产品概述
描述

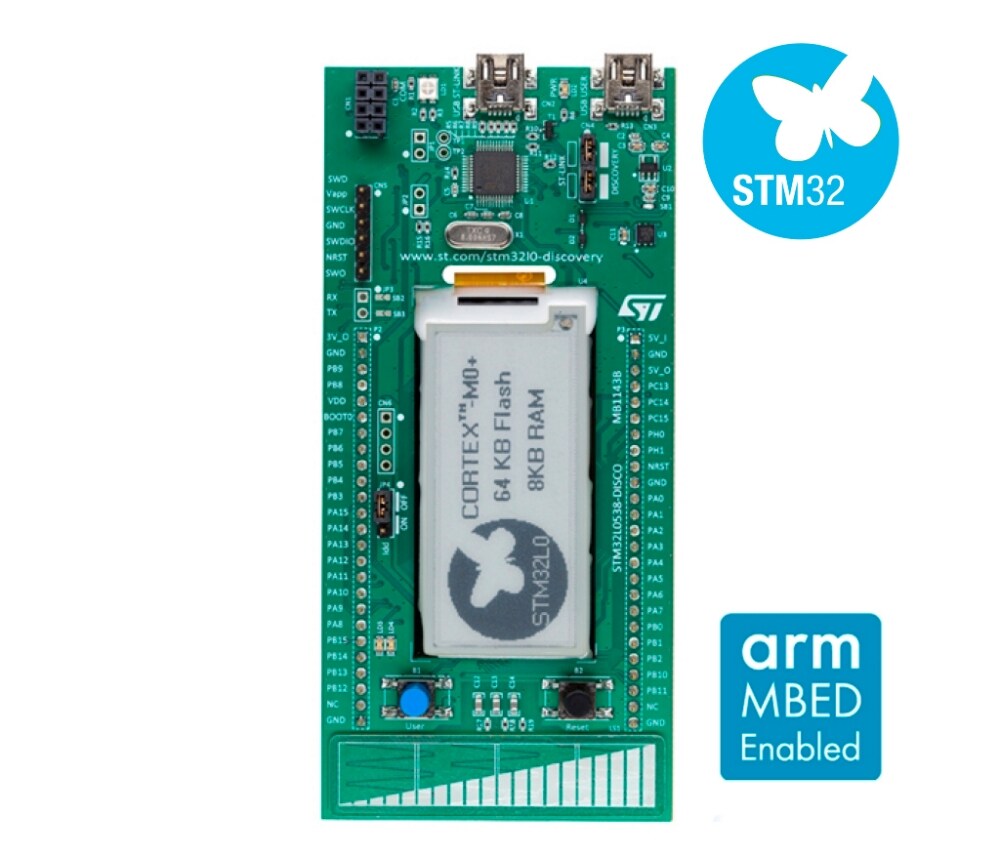

The STM32L053 Discovery kit (32L0538DISCOVERY) helps users to discover the ultra-low-power microcontrollers in the STM32L0 Series with the Arm® Cortex®-M0+ core. It offers everything required for beginners and experienced users to get started quickly and develop applications easily.
Based on the STM32L053C8T6, it includes an embedded ST-LINK/V2-1 debugger/programmer, linear touch sensor, touchkeys, IDD current measurement, 2.13” E-paper display, NFC connector for the PLUG-CR95HF-B board, LEDs, push-buttons and a user USB Mini-B connector.
-
所有功能
- STM32L053C8T6 microcontroller with 64 Kbytes of Flash memory and 8 Kbytes of RAM, in an LQFP48 package
- 2.13" E-paper display, 122×250 pixels
- USB 2.0 FS
- One linear touch sensor or four touchkeys
- Reset and user push-buttons
- Four color LEDs including two user LEDs
- IDD current measurement
- Board connectors:
- USB Mini-B connector
- NFC expansion connector for the PLUG-CR95HF-B daughterboard
- 2.54 mm pitch expansion header for direct access to various features of the STM32L053C8T6 microcontroller and easy probing of the LQFP48 I/Os
- Flexible power-supply options: ST-LINK USB VBUS, USB connector, or external sources
- External application power supply: 3 V and 5 V
- Comprehensive free software libraries and examples available with the STM32CubeL0 MCU Package
- On-board ST-LINK/V2-1 debugger/programmer with USB re-enumeration capability: mass storage, Virtual COM port, and debug port
- Support of a wide choice of Integrated Development Environments (IDEs) including IAR Embedded Workbench®, MDK-ARM, and STM32CubeIDE
您可能还会喜欢...
精选 视频
ARM mbed Integrated Development Environment using STM32 Nucleo platform
Learn more about the STM32L0 Series exiting features and ultra-low-power form with the STM32L0538-DISCO board
所有资源
| 资源标题 | 版本 | 更新时间 |
|---|
Board Manufacturing Specifications (2)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| ZIP | 1.1 | 15 Mar 2022 | 15 Mar 2022 | |
| ZIP | 1.1 | 30 Nov 2021 | 30 Nov 2021 |
物料清单 (1)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| ZIP | 2.1 | 28 Feb 2022 | 28 Feb 2022 |
Schematic Pack (2)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| 1.0 | 30 Nov 2021 | 30 Nov 2021 | ||
| 1.1 | 04 Mar 2022 | 04 Mar 2022 |
质量与可靠性
| 产品型号 | Marketing Status | 符合RoHS级别 | 材料声明** |
|---|---|---|---|
| STM32L0538-DISCO | 批量生产 | Ecopack1 | |
STM32L0538-DISCO
Package:
Ecopack1Material Declaration**:
(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此，它们可能不是100%适用于特定的设备。有关特定设备的信息，请联系 销售支持。
样片和购买
| 产品型号 | 供货状态 | Budgetary Price (US$)*/Qty | 从ST订购 | Order from distributors | 包 | 包装类型 | RoHS | Country of Origin | ECCN (US) | ECCN (EU) | 供应商 | Specific features | WEEE Compliant | 核心产品 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| STM32L0538-DISCO | | | distributors 无法联系到经销商，请联系我们的销售办事处 |
|
|
|
|
STM32L0538-DISCO 批量生产
