产品概述
描述

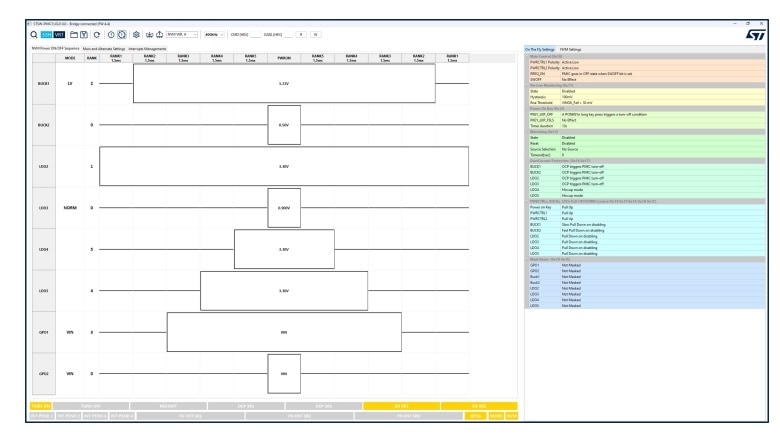

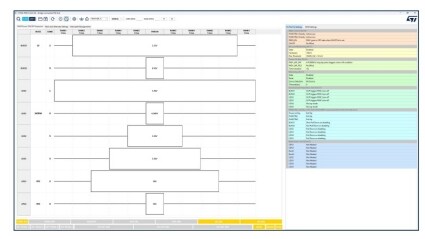

The STSW-PMIC1LGUI graphical user interface is used to monitor and configure the main parameters of the STPMIC1L power management IC (PMIC) embedded on the STEVAL-PMIC1LKV1 kit evaluation board. It also provides an easy and intuitive means to set up the NVM parameters of the STPMIC1L.
The I2C interface board STEVAL-USBDNGV1 supplied with the STEVAL-PMIC1LKV1 kit is used to establish communication between the STPMIC1L device on the evaluation board and a PC via USB.
The STSW-PMIC1LGUI is compatible with Windows 7, 8 and 10. No specific third-party software is needed.
-
所有功能
- Configuration of STPMIC1L parameters
- Monitoring of STPMIC1L parameters
- Access to NVM parameters
- Access to Fault and Event history
