产品概述
描述

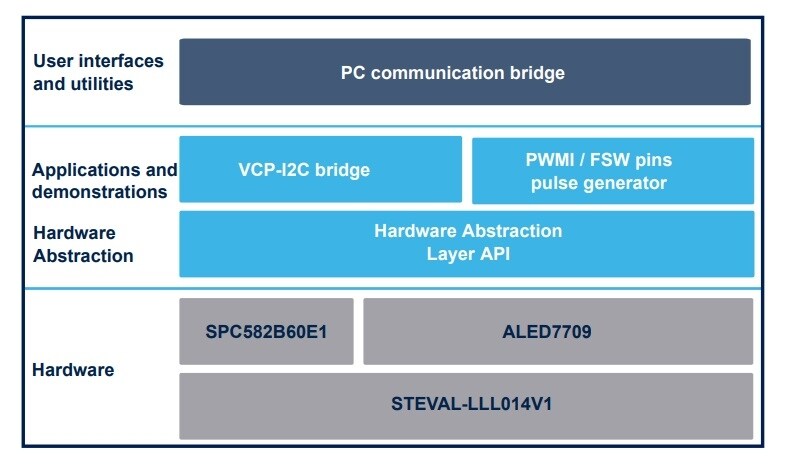

The STSW-LLL014FW firmware implementation is based on the 32-bit SPC582B60E1 microcontroller, allowing the configuration and control of the ALED7709 LED drivers over the I2C interface.
The firmware has been designed for the STEVAL-LLL014V1 evaluation kit to demonstrate the ALED7709 features as controller for lighting and backlighting.
The STSW-LLL014FW implements the bridge feature between the ALED7709 device and the STSW-LLL014GUI SW, running on a PC.
-
所有功能
- Running on SPC582B60 MCU
- I²C bridge between ALED7709 and the PC SW
- SW controlled PWM generator for PWMI and FSW pins
