产品概要
描述
The TS555 is a single CMOS timer with very low consumption:
(Icc(TYP)TS555 = 110 μA at VCC = +5 V versus Icc(TYP)NE555(a)= 3 mA),
and high frequency:
(ff(max.) TS555 = 2.7 MHz versus f(max)NE555(a)= 0.1 MHz).
Timing remains accurate in both monostable and astable mode.
The TS555 provides reduced supply current spikes during output transitions, which enable the use of lower decoupling capacitors compared to those required by bipolar NE555(a).
With the high input impedance (1012Ω), timing capacitors can also be minimized.
-
性能一览
- Very low power consumption:
- 110 μA typ at VCC= 5 V
- 90 μA typ at VCC= 3 V
- High maximum astable frequency of 2.7 MHz
- Pin-to-pin functionally-compatible with bipolar NE555(a)
- Wide voltage range: +2 V to +16 V
- Supply current spikes reduced during output transitions
- High input impedance: 1012Ω
- Output compatible with TTL, CMOS and logic MOS
- Very low power consumption:

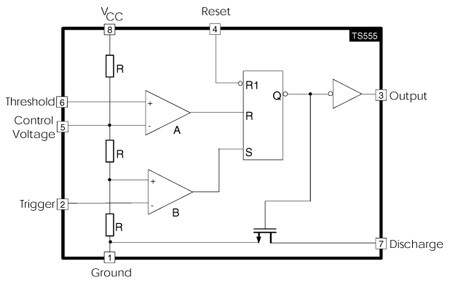

电路原理图
EDA Symbols, Footprints and 3D Models
STMicroelectronics - TS555
Speed up your design by downloading all the EDA symbols, footprints and 3D models for your application. You have access to a large number of CAD formats to fit with your design toolchain.
Please select one model supplier :
Symbols
Footprints
3D models
Quality and Reliability
| Part Number | Marketing Status | Package | Grade | 符合RoHS级别 | Longevity Commitment | Longevity Starting Date | Material Declaration** |
|---|---|---|---|---|---|---|---|
| TS555IDTTR | Active 产品已量产 | SO-8 | Industrial | Ecopack3 | - | - |
(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此，它们可能不是100%适用于特定的设备。有关特定设备的信息，请联系 销售支持。
You’re now leaving st.com and will be re-directed to our Partner’s website.
For the latest innovations and solutions from ST, sign up for our newsletters.
Sample & Buy
| Part Number | 供货状态 | Budgetary Price (US$)*/Qty | 从ST订购 | Order from distributors | Package | Packing Type | RoHS | Country of Origin | ECCN (US) | ECCN (EU) | Operating temperature (°C) | Operating Temperature (°C) (max) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 最小值 | 最大值 | |||||||||||||
| TS555IDTTR | | | distributors 无法联系到经销商，请联系我们的销售办事处 | |||||||||||
TS555IDTTR Active
