产品概述
描述
The VNB14NV04, VND14NV04, VND14NV04-1 and VNS14NV04 are monolithic devices made using STMicroelectronics VIPower M0 technology, intended for replacement of standard power MOSFETS in DC to 50 KHz applications. Built-in thermal shutdown, linear current limitation and overvoltage clamp protect the chip in harsh environments.
Fault feedback can be detected by monitoring the voltage at the input pin.
-
所有功能
- ESD protection
- Diagnostic feedback through input pin
- Compatible with standard Power MOSFET
- Linear current limitation
- Short circuit protection
- Thermal shutdown
- Low current drawn from input pin
- Direct access to the gate of the Power MOSFET (analog driving)
- Integrated clamp

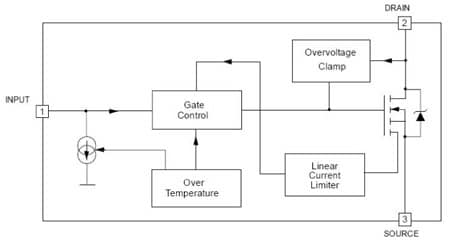

电路原理图
EDA符号、封装和3D模型
意法半导体 - VNS14NV04
Speed up your design by downloading all the EDA symbols, footprints and 3D models for your application. You have access to a large number of CAD formats to fit with your design toolchain.
Please select one model supplier :
符号
封装
3D模型
