Product overview
描述
The VNP20N07FI, VNB20N07 and VNV20N07 are monolithic devices made using STMicroelectronics VlPower M0 Technology, intended for replacement of standard power MOSFETS in DC to 50 KHz applications. Built-in thermal shut-down, linear current limitation and overvoltage clamp protect the chip in harsh enviroments.
Fault feedback can be detected by monitoring the voltage at the input pin.
-
All features
- ESD PROTECTION
- DIAGNOSTIC FEEDBACK THROUGH INPUT PIN
- COMPATIBLE WITH STANDARD POWER MOSFET
- LINEAR CURRENT LIMITATION
- SHORT CIRCUIT PROTECTION
- THERMAL SHUT DOWN
- LOW CURRENT DRAWN FROM INPUT PIN
- DIRECT ACCESS TO THE GATE OF THE POWER MOSFET (ANALOG DRIVING)
- INTEGRATED CLAMP

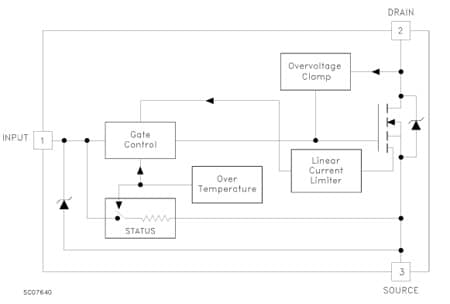

电路原理图
