L9826

批量生产
Design Win

用于电阻和电感负载的八通道低侧驱动器,具有串行/并行输入控制、输出保护和诊断

下载数据手册 Order Direct

产品概述

描述

The L9826 is a protected octal low-side driver IC designed for the automotive environment.

The 8 -bit serial peripheral interface (SPI) is able to control the device's eight channels and to provide its load's diagnosis. In addition output 1 and 2 can also be controlled through dedicated input pins NON1 and NON2.

Overcurrent and short-circuit protections are present as well as the output voltage clamping which is able to protect the L9826 during operation with inductive loads.

  • 所有功能

    • 8 channels low side driver with 450 mA output current capability
    • Typical RDSON1.5 Ω at TJ = 25 °C
    • Parallel control for output 1 and 2
    • SPI control on all outputs
    • Reset function
    • Diagnostic through 8 bit SPI
    • Intrinsic output voltage clamping 50 V (Typ) protection for inductive load drive
    • Short circuit current limitation and thermal shutdown for outputs 1 and 2
    • Overcurrent and short circuit shutdown for outputs 3 to 8

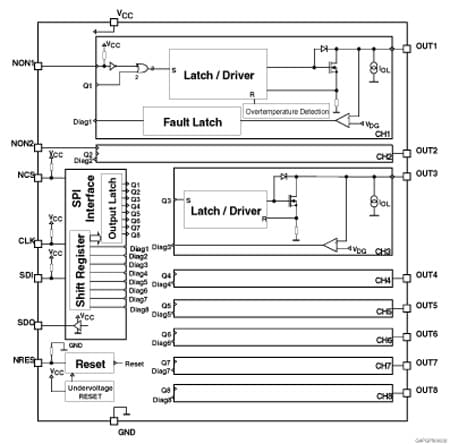

电路原理图
