L9637

批量生产
Design Win

ISO9141 接口

下载数据手册

产品概述

描述

The L9637 is a monolithic integrated circuit containing standard ISO 9141 compatible interface functions.

  • 所有功能

    • Defined OFF output status in undervoltage condition and VS or GND interruption
    • K output current limitation, typ. IK = 60 mA
    • High input impedance for open VS or GND connection
    • Controlled output slope for low EMI
    • Defined K output OFF for TX input open
    • Defined output ON status of LO or RX for open LI or K inputs
    • EMI robustness optimized
    • Integrated pull up resistors for TX, RX and LO
    • Overtemperature shut down function Selective to K-I/O pin
    • Bidirectional K-I/O pin with supply voltage dependent input threshold
    • Operating power supply voltage range 4.5 V ≤ VS ≤ 36 V (40 V for transients)
    • Standby mode with very low current consumption ISSB ≤ 1 mA @ VCC ≤ 0.5 V
    • Reverse supply (battery) protected down to VS ≥ -24 V
    • TTL compatible TX input
    • Wide input and output voltage range -24 V ≤ VK ≤ VS
    • Low quiescent current in off condition ISOFF = 120 µA

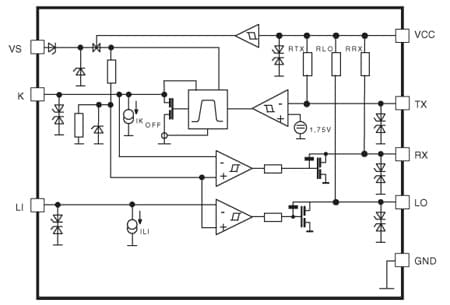

电路原理图

您可能还会喜欢...

EDA符号、封装和3D模型

STMicroelectronics - L9637

Speed up your design by downloading all the EDA symbols, footprints and 3D models for your application. You have access to a large number of CAD formats to fit with your design toolchain.

Please select one model supplier :

Symbols

符号

Footprints

封装

3D model

3D模型

质量与可靠性

产品型号 Marketing Status 等级规格 符合RoHS级别 材料声明**
E-L9637D
批量生产
SO-8 汽车应用 Ecopack2
E-L9637D013TR
批量生产
SO-8 汽车应用 Ecopack2

E-L9637D

Package:

SO-8

Material Declaration**:

PDF XML

Marketing Status

批量生产

Package

SO-8

Grade

Automotive

RoHS Compliance Grade

Ecopack2

E-L9637D013TR

Package:

SO-8

Material Declaration**:

PDF XML

Marketing Status

批量生产

Package

SO-8

Grade

Automotive

RoHS Compliance Grade

Ecopack2

(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此,它们可能不是100%适用于特定的设备。有关特定设备的信息,请联系 销售支持
