产品概要
描述
The L9468 is a monolithic multifunction generator Voltage regulator intended for use in automotive applications.
This device regulates the output of an automotive generator by controlling the field winding current by means of a variable frequency PWM high side driver.
-
性能一览
- COMPLEX DIAGNOSTICS
- REDUCED OUTPUT MODE
- FULLY MONOLITHIC DESIGN
- THERMAL PROTECTION
- HIGH SIDE FIELD DRIVE
- PROTECTED DIAGNOSTIC LAMP DRIVER
- LOAD RESPONSE CONTROL
- FIELD DRIVER SHORT CIRCUIT PROTECTION

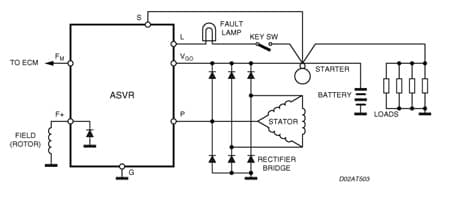

电路原理图
EDA Symbols, Footprints and 3D Models
STMicroelectronics - L9468
Speed up your design by downloading all the EDA symbols, footprints and 3D models for your application. You have access to a large number of CAD formats to fit with your design toolchain.
Please select one model supplier :
Symbols
Footprints
3D models
