Product overview
描述
The L93PI is a monolithic integrated quad low side driver realized in advanced Multipower-BCD technology. It is intended to drive lines, lamps or relais in automotive or industrial applications.
-
All features
- CONTROLLED OUTPUT SLOPE FOR LOW EMI
- OUTPUT CURRENT LIMITATION
- INTEGRATED OUTPUT CLAMPING FOR FAST INDUCTIVE RECIRCULATION VFB > 45V
- OVERTEMPERATURE SHUT-DOWN
- ESD: ALL PINS ARE GUARANTEED TILL 2kV HUMAN BODY MODEL
- STATUS MONITORING FOR
OVERTEMPERATURE DISCONNECTED GROUND OR SUPPLY VOLTAGE - DEFINED OUTPUT OFF STATE OFF FOR OPEN INPUTS
- TTL AND CMOS COMPATIBLE INPUTS
- WIDE INPUT VOLTAGE RANGE -24V UP TO +45V
- REVERSE BIASING PROTECTED (VS = -24V)
- WIDE OPERATING SUPPLY VOLTAGE RANGE FROM 4.5V UP TO 32V
- PROGRAMMABLE SIGNAL TRANSFER POLARITY
- FOUR OPEN DRAIN DMOS OUTPUTS, WITH RDSon = 1.5
at 25 °C and VS > 6V - VERY LOW STANDBY QUIESCENT CURRENT < 2µA

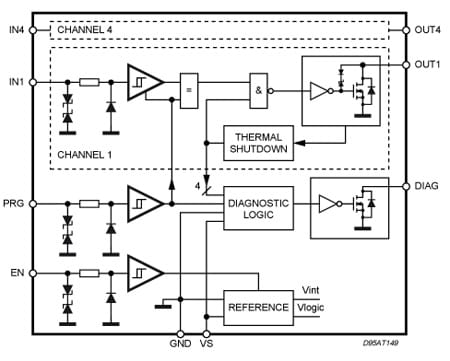

电路原理图
EDA Symbols, Footprints and 3D Models
STMicroelectronics - L93PI
Speed up your design by downloading all the EDA symbols, footprints and 3D models for your application. You have access to a large number of CAD formats to fit with your design toolchain.
Please select one model supplier :
Symbols
Footprints
3D models
Quality and Reliability
| Part Number | Marketing Status | Package | Grade | 符合RoHS级别 | Longevity Commitment | Longevity Starting Date | Material Declaration** |
|---|---|---|---|---|---|---|---|
| L93PI | NRND 不推荐用于新设计。量产仅供支持现有生产。 | SO-20 | Automotive | Ecopack2 | - | - |
